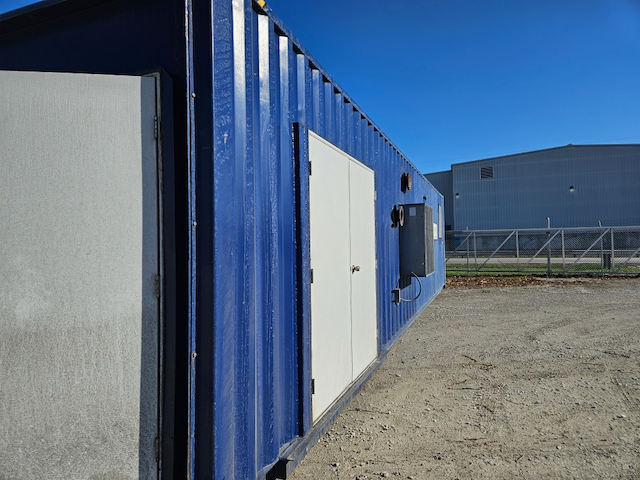

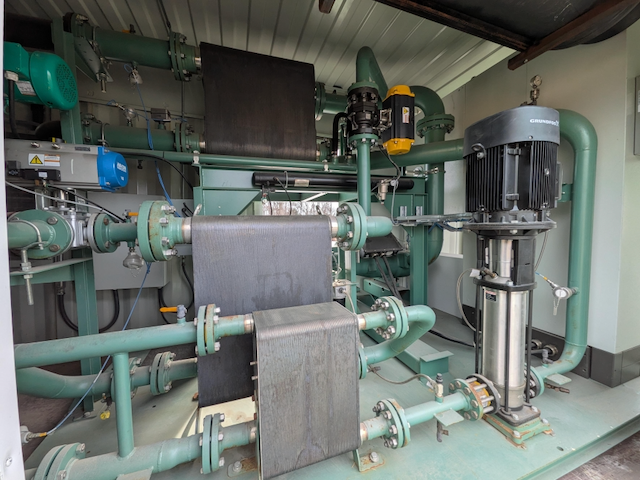

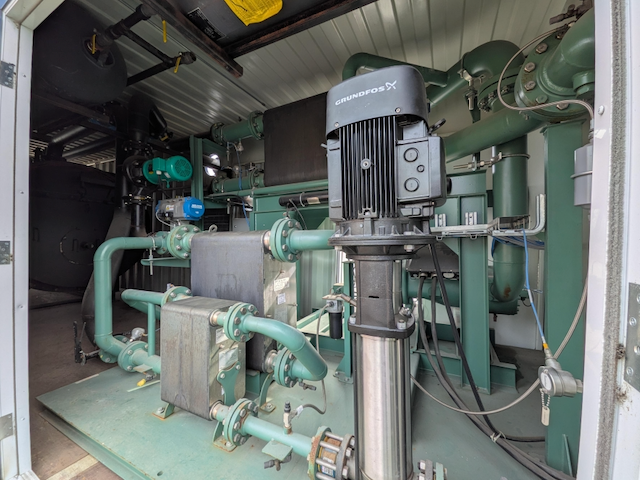

ElectraTherm 125 kWe System with Hurst Boiler Packaged in a 40 Foot Shipping Container Ready to Deploy A used turnkey waste-heat-to-power system is now available, fully integrated inside a 40-foot shipping container and in near-new condition with minimal runtime. of 39 hours. This self-contained unit pairs a Hurst Series 250 boiler with an ElectraTherm Power Organic Rankine Cycle 125 kWe 480 V 3 phase 60 hz generator, designed to efficiently convert low-grade heat into grid-ready electricity. Factory-tested, fully certified, and equipped with advanced PLC controls, rapid startup, and built-in safety systems, this containerized power solution offers a compact, transportable, and ready-to-deploy energy asset. |
|

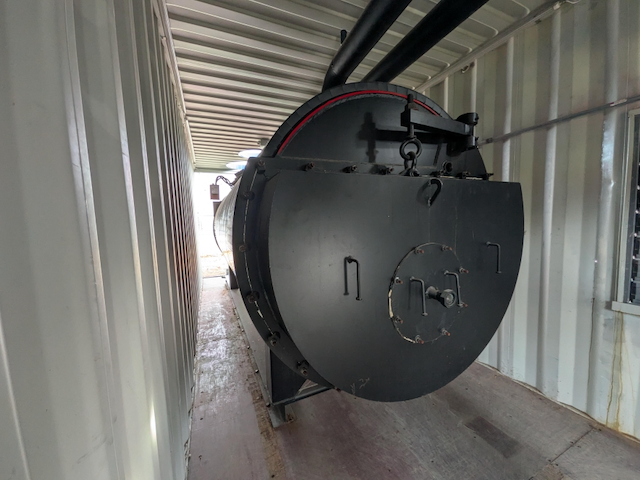

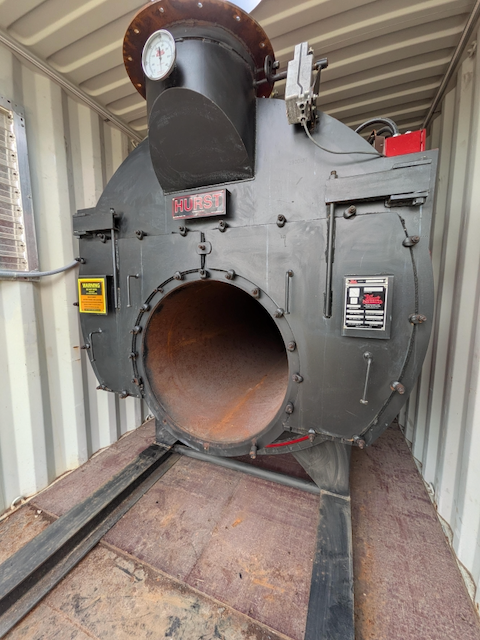

Details ElectraTherm: IT-6500SN: 6305MFG: 6500BDate: 8/11/2021Working Fluid Pressure MAWP: 10 Bar @ 132 C (145 psi)Hot Water: 10 Bar @ 132 C Max Flow: 80 m3/hr 77-132 C Operational RangeCooling Water: 10 Bar @ 38 CRefrigerant: R-245fa (Min Charge: 182 kg)Oil Charge: 13.5 kgOil: 100 ISO/500 SUS ALKYLBENZENEGenerator: 125 kW 3-phase 480 V 60 HZ Delta with Earth Groundhttps://electratherm.comHurst Boiler www.hurstboiler.comASMEH Job Number: 2300197 Model #S250-X-200-30W26035Max WP PSI: 30 WTRSerial Number: S652-30W-1Heating Surface Area: 632 SFMininum Safety Valve / HR: 8,000,000 BTU 8 MMMBTU/hrBoiler Output/HR: 6,695,000 BTUYear Built: 05/2025Max Water Temperature: 250 F (121 C)See: https://www.hurstboiler.com/cad/ab-series-250Video: https://youtu.be/8bsTh-UrInAhttps://youtube.com/shorts/1X4q6v6c1ws?feature=shareYouTube Video: Walk around of container mounted ElectraTherm 125 kWe ORC system and Hurst Boiler YouTube Video: Interior of container mounted ElectraTherm 125 kWe ORC system and Hurst Boiler |
Annual Revenue from 125 kWe Continuous Output |
|
Compare to New System New system price over $600,000 in this pre-packaged installed format. Priced separately Electratherm ORC: $450,000Hurst Boiler: $100,000Containerized with assembly: $100,000
|
|
|
|
|
|
