Unlock the power of supercritical CO2. Infinity Supercritical designs high-efficiency extraction systems that pull full-spectrum natural oils, flavorings, fragrances, hops, lavender, and other botanicals with clean, solvent-free precision—while also opening the door to advanced experimentation in transcritical CO2 heat pumps, supercritical ORC turbines, nano-science, ferrofluids, data center waste heat to power and cooling, and more...
November Special - ROT24 Turbine Plans Includes licensing for unlimited production... More Info
|
supercritical extraction and processor using infinity turbine design build cart |

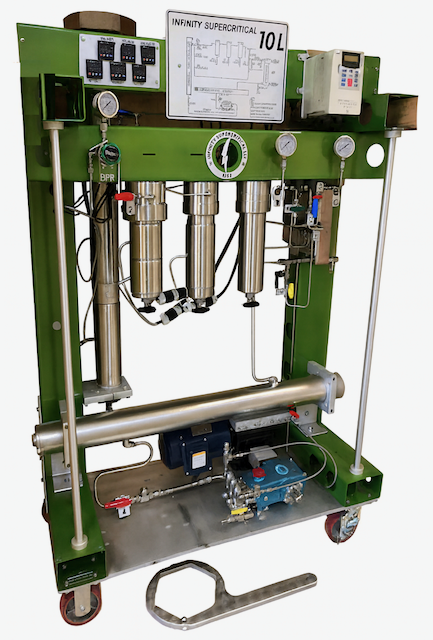

Supercritical CO2 10L Extractor and Processing System Supercritical CO2 Extractor 10L system for full spectrum botanical oil extraction. No air compressor needed. This system is built like a tank. Powder coated caster beams with 5 inch heavy duty casters for easy movement. Compact system will fit through any standard door, hallway, or elevator. This system is great for beer hops, lavender, vanilla, pinene, and other valuable extractions. Supercritical CO2 is used for botanical extraction, vapor deposition, lithium battery recycling, precious metal gold recycling, making nano particles and more. |
|
Silver and Gold Extraction Coming soon...
|
|

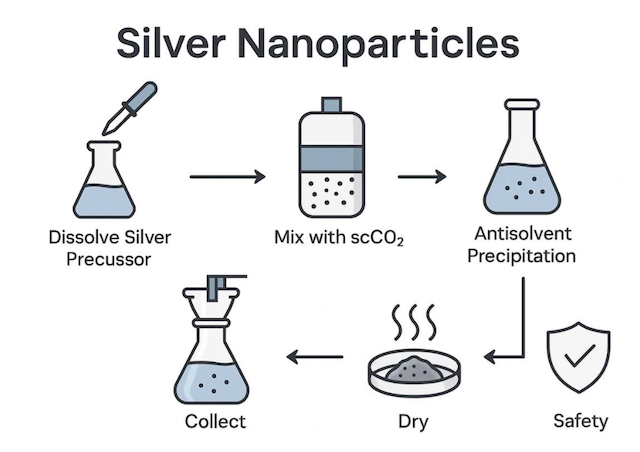

Silver and Gold Nanoparticles Supercritical CO2–enhanced spinning disc reactors are redefining how high-value silver nanoparticles are produced, combining ultra-fast thin-film mixing with tunable sCO2 chemistry to deliver tightly controlled 10–40 nm particles at scale. By intensifying mass transfer and nucleation in a continuous process, this SDR–sCO2 platform slashes solvent use, simplifies purification, and unlocks premium markets where silver nanoparticles can command values of $45 per gram. The result is a compact, cleaner, and more energy-efficient production train that can turn modest market share into hundreds of millions in potential annual revenue, while generating the cash flow needed to fund next-generation work in quantum dots, pharmaceuticals, and advanced functional materials. |
|
Supercritical CO2 Beer Hops Oil Extraction for Full Spectrum Botanical Oil |
Infinity Supercritical CO2 Product and Development Focus Supercritical CO2 Extractor: The 10L Supercritical CO2 System gives you extraction-to-bottle flexibility for extracting oil from botanicals. Gross sales more than $2,000 per day producing skin cream. Build Plans: If you are interesting in manufacturing supercritical CO2 extractors, then consider our system plans which allow you to build a system for production, including assembly only to sales. If you have a machine shop with your labor, you can build a 10L.Infinity Supercritical is now offering build licenses for its popular and successful CO2 extraction system.Trending: Our incredible liquid-gas phase change supercritical CO2 system can be used as a heat pump, sulfur deposition for carbon nanofiber, gold recovery from PC boards, battery materials recycling, separation, and more. We welcome any business and equipment inquiries, as well as licensing our systems for manufacturing.
|
Supercritical CO2 Build Licensing |
Supercritical CO2 Extractor and Processor Cart Design Build Licensing Infinity is now offering build licenses for its popular and successful CO2 extraction system.We have the full Cad/Cam plans, parts list, conversion of CAT pump procedure, assembly plan, even building the crate for shipping.Unlimited production is $250,000. You can build and sell these for the hemp, hops, plant extraction, CO2 heat pump, nano particle processing, and more. |
Supercritical CO2 System Support Files Package which includes Cat 310 Pump Conversion to CO2 Parts List and consumable parts such as O rings and more |
Supercritical CO2 System Support Files Package $5000 Support package includes:A. Build a CO2 pump from a Cat 310 Pressure Washer pump. Cat 310 Conversion Kit to CO2 Duty (for a fraction of the cost of purchasing a dedicated CO2 pump from Cat). Parts list only. Support is not included. Pressure seal manufacturer for high and low pressure seals as low as $4.00 a seal versus $30-50 a seal from Cat Pumps. Pump assembly checklist.B. Build a botanicals basket for extraction. 10L Botanical Basket Cad/Cam files including supplier in China for full build purchase.C. O-rings and other parts. Infinity Supercritical 10L Consumable Parts List and Suppliers with links. Includes PID controller, Cat pump parts, hoses, motor pump coupler, down tube material, CC1 CC2 CC3 O-Rings part number and supplier, brass sleeve o-rings, extraction vessel o-rings, pump valve o-rings, exhaust hose, low and high pressure pump seals, 3 micron stainless steel filter for CC3 (to prevent any material from going into pump), Cat 310 pump valve replacement kit, pump brass sleeve replacement kit, and pump stainless steel retainer. D. Convert to Automated extraction machine. Supercritical CO2 Automation Information including flowcharts, components, PID justification, and more.E. Customer Training Checklist, 10L Installation Checklist, 10L Flow Diagram, Crate build cad/cam and parts list.The above information includes parts lists, part numbers, and suppliers when available. Support is optional and additional.
|
|
ORC Extraction and Processor System Extracting plant, algae, gold, or other components is a Organic Rankine Cycle. Liquid CO2 is pumped to pressure, simultaneously heated to gas in the extraction vessel, then expanded (a cooling process) which releases the entrained extracted materials into a collection vessel. The CO2 gas is then condensed (cooled) into a liquid and the process is repeated.It is the same cycle which is used to make power, except that the turbine and generator is replaced by the extraction vessel, where materials are held with components that are extracted.The biggest difference between a power vs. extraction transcritical CO2 cycle is the mechanism doing the work (i.e. a turbine generator or a extraction vessel holding material for extraction).
|
|
|
|
Cat 310 Pump Conversion to CO2 |
Cat Pump Supercritical Conversion Cat 310 Conversion Kit to CO2 Duty. 7 New units in stock. $3,500 each.
|

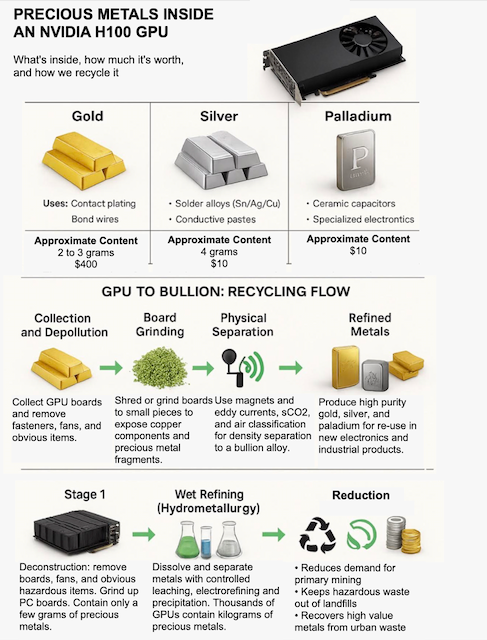

Precious Metal Recovery from NVIDIA H100 GPU |

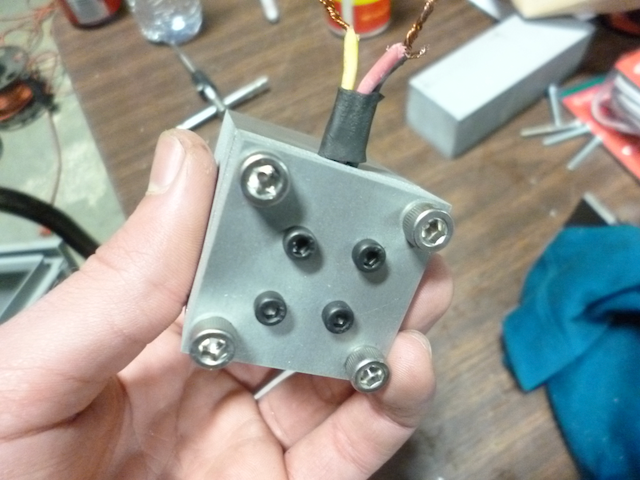

Supercritical CO2 Infinity Cart Filter Element Inset Turbine and Heat Pump Experimentation |

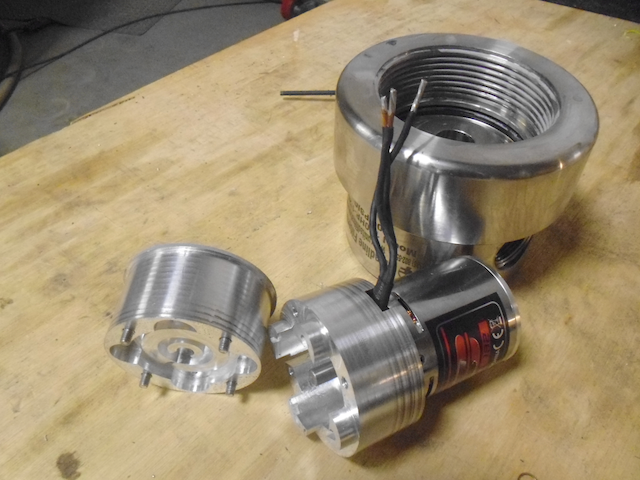

Supercritical CO2 Filter Turbine Generator Developers Kit for GPU Waste Heat to Power |
Turbine Generator for Screw-in Filter Replacement for Data Center GPU Cooling and Power Generation |

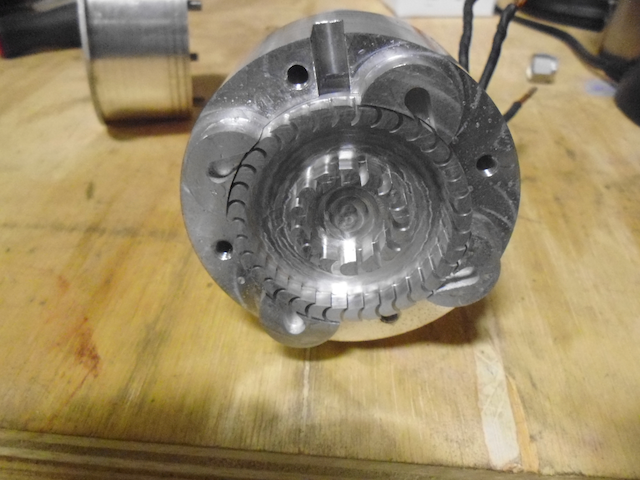

Supercritical CO2 Infinity Cart Filter Element Inset Turbine Rotor |
Supercritical CO2 Beer Hop Oil Extraction for Full Spectrum Botanical Oil for Breweries |
