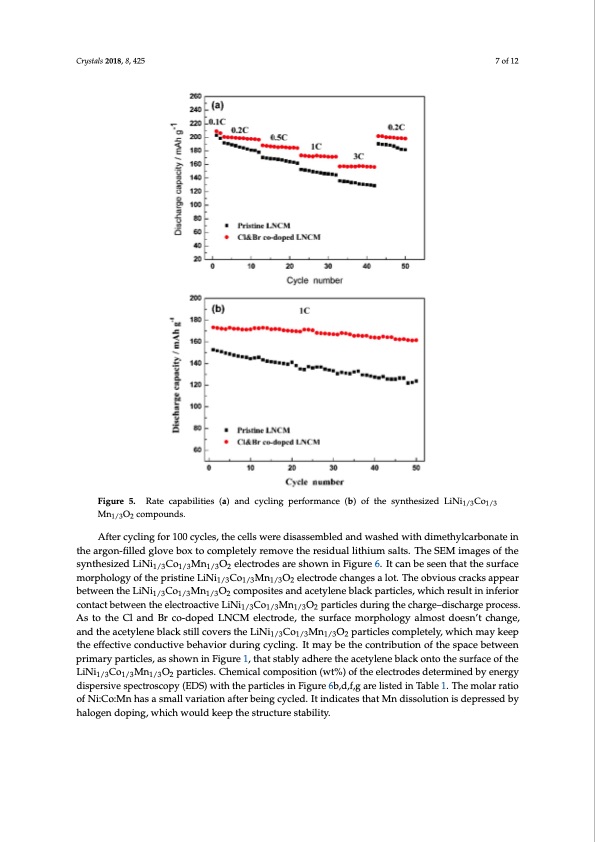

Crystals 2018, 8, 425 7 of 12 Figure 5. Rate capabilities (a) and cycling performance (b) of the synthesized LiNi1/3Co1/3 Mn1/3O2 compounds. After cycling for 100 cycles, the cells were disassembled and washed with dimethylcarbonate in the argon-filled glove box to completely remove the residual lithium salts. The SEM images of the synthesized LiNi1/3Co1/3Mn1/3O2 electrodes are shown in Figure 6. It can be seen that the surface morphology of the pristine LiNi1/3Co1/3Mn1/3O2 electrode changes a lot. The obvious cracks appear between the LiNi1/3Co1/3Mn1/3O2 composites and acetylene black particles, which result in inferior contact between the electroactive LiNi1/3Co1/3Mn1/3O2 particles during the charge–discharge process. As to the Cl and Br co-doped LNCM electrode, the surface morphology almost doesn’t change, and the acetylene black still covers the LiNi1/3Co1/3Mn1/3O2 particles completely, which may keep the effective conductive behavior during cycling. It may be the contribution of the space between primary particles, as shown in Figure 1, that stably adhere the acetylene black onto the surface of the LiNi1/3Co1/3Mn1/3O2 particles. Chemical composition (wt%) of the electrodes determined by energy dispersive spectroscopy (EDS) with the particles in Figure 6b,d,f,g are listed in Table 1. The molar ratio of Ni:Co:Mn has a small variation after being cycled. It indicates that Mn dissolution is depressed by halogen doping, which would keep the structure stability.PDF Image | Enhanced High Voltage Performance of Chlorine Bromine
