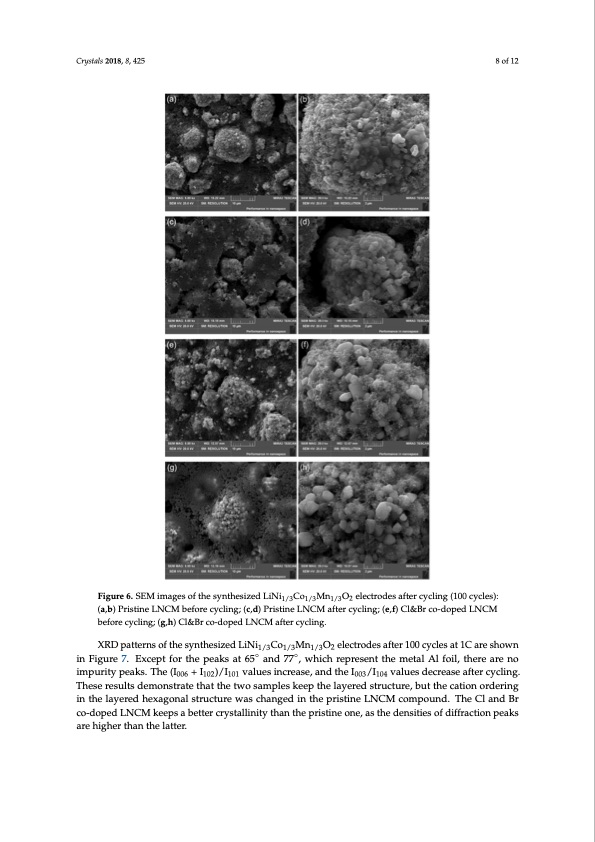

Crystals 2018, 8, 425 8 of 12 Figure 6. SEM images of the synthesized LiNi1/3Co1/3Mn1/3O2 electrodes after cycling (100 cycles): (a,b) Pristine LNCM before cycling; (c,d) Pristine LNCM after cycling; (e,f) Cl&Br co-doped LNCM before cycling; (g,h) Cl&Br co-doped LNCM after cycling. XRD patterns of the synthesized LiNi1/3Co1/3Mn1/3O2 electrodes after 100 cycles at 1C are shown in Figure 7. Except for the peaks at 65◦ and 77◦, which represent the metal Al foil, there are no impurity peaks. The (I006 + I102)/I101 values increase, and the I003/I104 values decrease after cycling. These results demonstrate that the two samples keep the layered structure, but the cation ordering in the layered hexagonal structure was changed in the pristine LNCM compound. The Cl and Br co-doped LNCM keeps a better crystallinity than the pristine one, as the densities of diffraction peaks are higher than the latter.PDF Image | Enhanced High Voltage Performance of Chlorine Bromine
