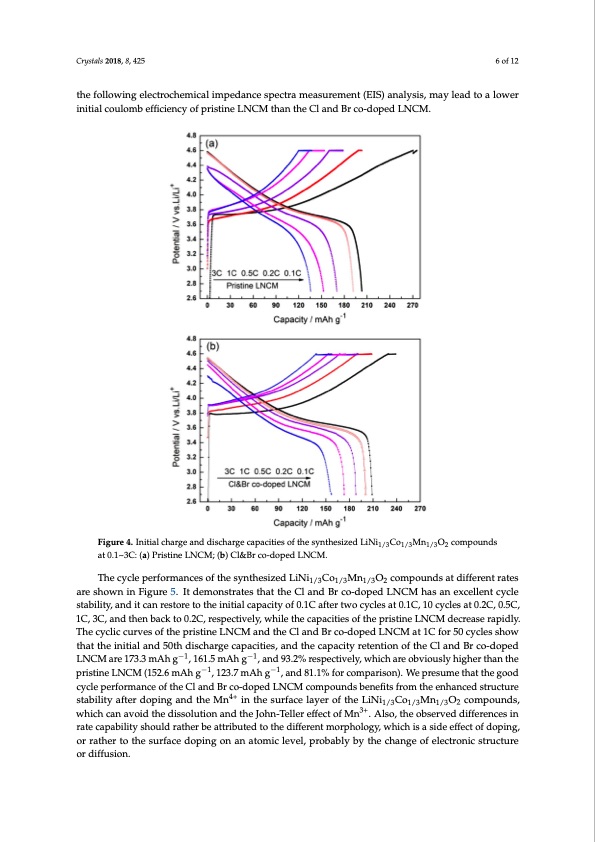

Crystals 2018, 8, 425 6 of 12 the following electrochemical impedance spectra measurement (EIS) analysis, may lead to a lower initial coulomb efficiency of pristine LNCM than the Cl and Br co-doped LNCM. Figure 4. Initial charge and discharge capacities of the synthesized LiNi1/3Co1/3Mn1/3O2 compounds at 0.1~3C: (a) Pristine LNCM; (b) Cl&Br co-doped LNCM. The cycle performances of the synthesized LiNi1/3Co1/3Mn1/3O2 compounds at different rates are shown in Figure 5. It demonstrates that the Cl and Br co-doped LNCM has an excellent cycle stability, and it can restore to the initial capacity of 0.1C after two cycles at 0.1C, 10 cycles at 0.2C, 0.5C, 1C, 3C, and then back to 0.2C, respectively, while the capacities of the pristine LNCM decrease rapidly. The cyclic curves of the pristine LNCM and the Cl and Br co-doped LNCM at 1C for 50 cycles show that the initial and 50th discharge capacities, and the capacity retention of the Cl and Br co-doped LNCM are 173.3 mAh g−1, 161.5 mAh g−1, and 93.2% respectively, which are obviously higher than the pristine LNCM (152.6 mAh g−1, 123.7 mAh g−1, and 81.1% for comparison). We presume that the good cycle performance of the Cl and Br co-doped LNCM compounds benefits from the enhanced structure stability after doping and the Mn4+ in the surface layer of the LiNi1/3Co1/3Mn1/3O2 compounds, which can avoid the dissolution and the John-Teller effect of Mn3+. Also, the observed differences in rate capability should rather be attributed to the different morphology, which is a side effect of doping, or rather to the surface doping on an atomic level, probably by the change of electronic structure or diffusion.PDF Image | Enhanced High Voltage Performance of Chlorine Bromine
