PDF Publication Title:
Text from PDF Page: 127

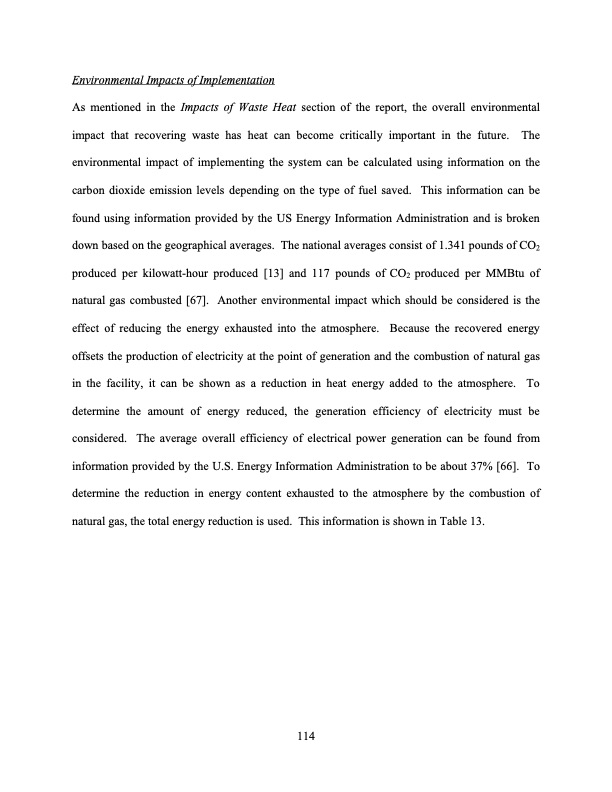

Environmental Impacts of Implementation As mentioned in the Impacts of Waste Heat section of the report, the overall environmental impact that recovering waste has heat can become critically important in the future. The environmental impact of implementing the system can be calculated using information on the carbon dioxide emission levels depending on the type of fuel saved. This information can be found using information provided by the US Energy Information Administration and is broken down based on the geographical averages. The national averages consist of 1.341 pounds of CO2 produced per kilowatt-hour produced [13] and 117 pounds of CO2 produced per MMBtu of natural gas combusted [67]. Another environmental impact which should be considered is the effect of reducing the energy exhausted into the atmosphere. Because the recovered energy offsets the production of electricity at the point of generation and the combustion of natural gas in the facility, it can be shown as a reduction in heat energy added to the atmosphere. To determine the amount of energy reduced, the generation efficiency of electricity must be considered. The average overall efficiency of electrical power generation can be found from information provided by the U.S. Energy Information Administration to be about 37% [66]. To determine the reduction in energy content exhausted to the atmosphere by the combustion of natural gas, the total energy reduction is used. This information is shown in Table 13. 114PDF Image | TUDY OF LOW-GRADE WASTE HEAT RECOVERY
PDF Search Title:
TUDY OF LOW-GRADE WASTE HEAT RECOVERYOriginal File Name Searched:
u0015_0000001_0000628.pdfDIY PDF Search: Google It | Yahoo | Bing
