Text from PDF Page: 128

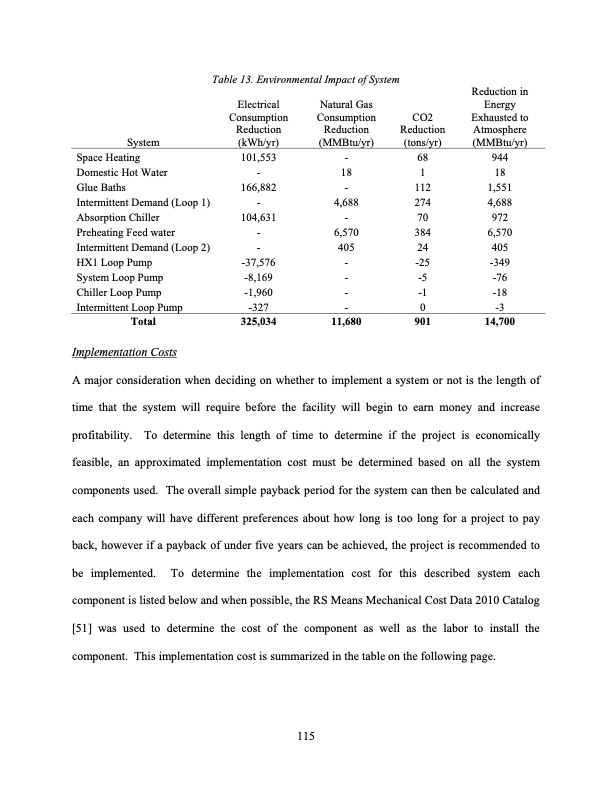

System Space Heating Domestic Hot Water Glue Baths Intermittent Demand (Loop 1) Absorption Chiller Preheating Feed water Intermittent Demand (Loop 2) HX1 Loop Pump System Loop Pump Chiller Loop Pump Intermittent Loop Pump Total Implementation Costs Electrical Consumption Reduction (kWh/yr) 101,553 - 166,882 - 104,631 - - -37,576 -8,169 -1,960 -327 325,034 Natural Gas Consumption Reduction (MMBtu/yr) CO2 Reduction (tons/yr) Reduction in Energy Exhausted to Atmosphere (MMBtu/yr) Table 13. Environmental Impact of System - 68 944 18 1 18 - 112 1,551 4,688 274 4,688 - 70 972 6,570 384 6,570 405 24 405 - -25 -349 - -5 -76 - -1 -18 - 0 -3 A major consideration when deciding on whether to implement a system or not is the length of time that the system will require before the facility will begin to earn money and increase profitability. To determine this length of time to determine if the project is economically feasible, an approximated implementation cost must be determined based on all the system components used. The overall simple payback period for the system can then be calculated and each company will have different preferences about how long is too long for a project to pay back, however if a payback of under five years can be achieved, the project is recommended to be implemented. To determine the implementation cost for this described system each component is listed below and when possible, the RS Means Mechanical Cost Data 2010 Catalog [51] was used to determine the cost of the component as well as the labor to install the component. This implementation cost is summarized in the table on the following page. 115 11,680 901 14,700PDF Image | TUDY OF LOW-GRADE WASTE HEAT RECOVERY
