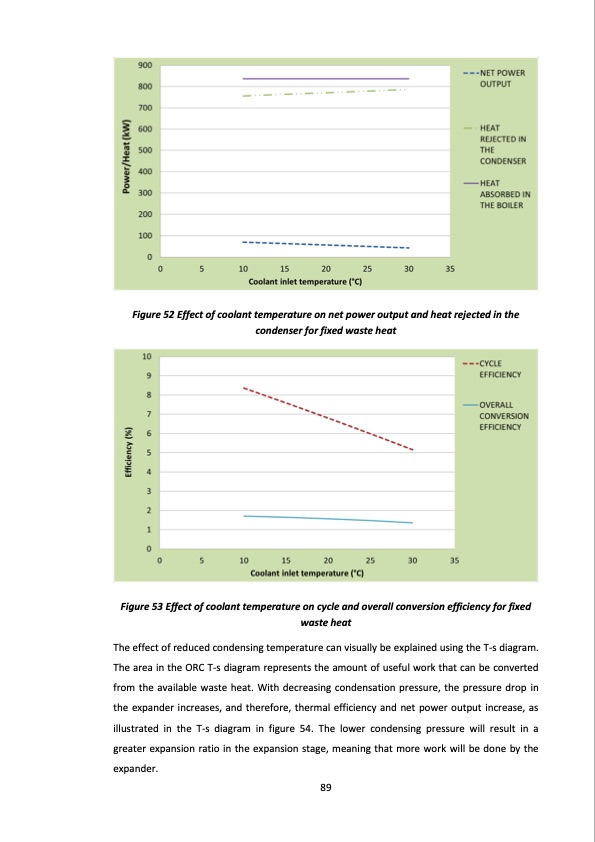

Figure 52 Effect of coolant temperature on net power output and heat rejected in the condenser for fixed waste heat Figure 53 Effect of coolant temperature on cycle and overall conversion efficiency for fixed waste heat The effect of reduced condensing temperature can visually be explained using the T-s diagram. The area in the ORC T-s diagram represents the amount of useful work that can be converted from the available waste heat. With decreasing condensation pressure, the pressure drop in the expander increases, and therefore, thermal efficiency and net power output increase, as illustrated in the T-s diagram in figure 54. The lower condensing pressure will result in a greater expansion ratio in the expansion stage, meaning that more work will be done by the expander. 89PDF Image | study of ORC with the expansion process twin screw machines
