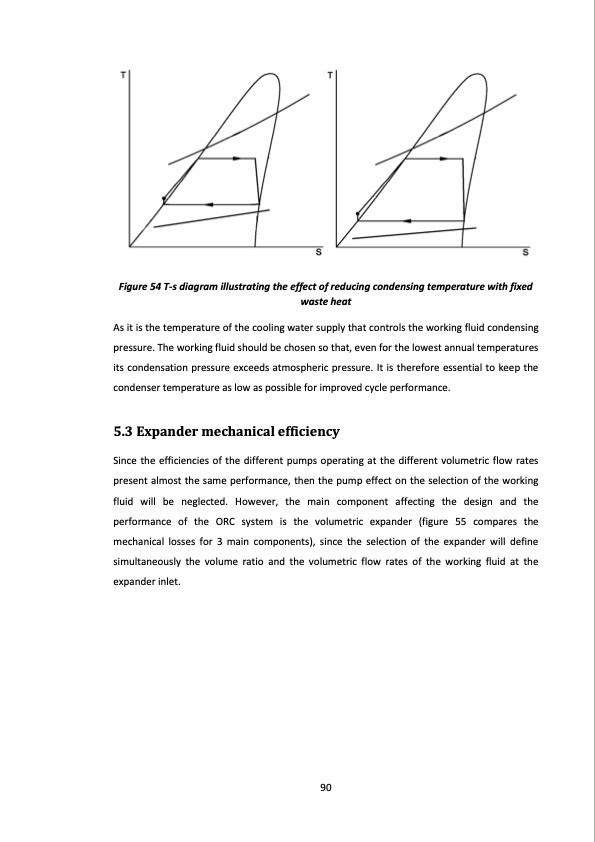

Figure 54 T-s diagram illustrating the effect of reducing condensing temperature with fixed waste heat As it is the temperature of the cooling water supply that controls the working fluid condensing pressure. The working fluid should be chosen so that, even for the lowest annual temperatures its condensation pressure exceeds atmospheric pressure. It is therefore essential to keep the condenser temperature as low as possible for improved cycle performance. 5.3 Expander mechanical efficiency Since the efficiencies of the different pumps operating at the different volumetric flow rates present almost the same performance, then the pump effect on the selection of the working fluid will be neglected. However, the main component affecting the design and the performance of the ORC system is the volumetric expander (figure 55 compares the mechanical losses for 3 main components), since the selection of the expander will define simultaneously the volume ratio and the volumetric flow rates of the working fluid at the expander inlet. 90PDF Image | study of ORC with the expansion process twin screw machines
