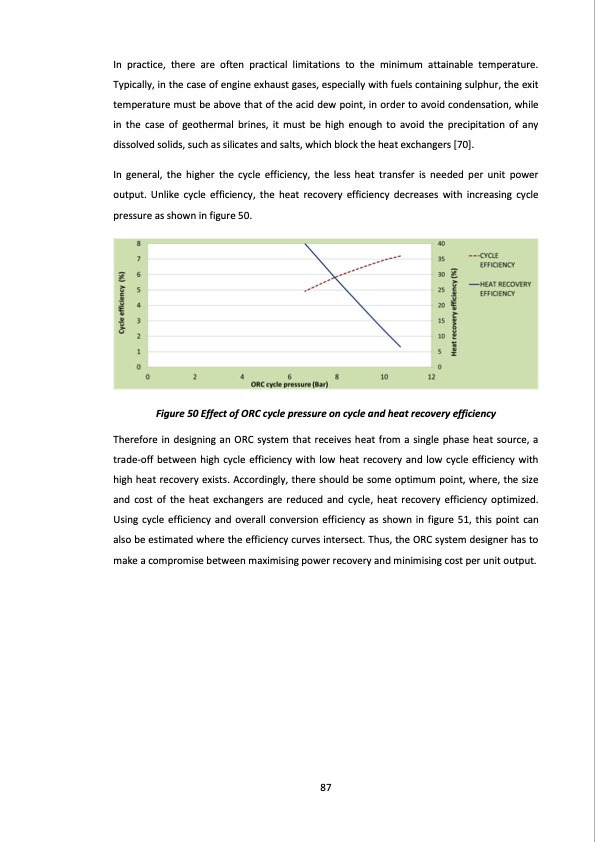

In practice, there are often practical limitations to the minimum attainable temperature. Typically, in the case of engine exhaust gases, especially with fuels containing sulphur, the exit temperature must be above that of the acid dew point, in order to avoid condensation, while in the case of geothermal brines, it must be high enough to avoid the precipitation of any dissolved solids, such as silicates and salts, which block the heat exchangers [70]. In general, the higher the cycle efficiency, the less heat transfer is needed per unit power output. Unlike cycle efficiency, the heat recovery efficiency decreases with increasing cycle pressure as shown in figure 50. Figure 50 Effect of ORC cycle pressure on cycle and heat recovery efficiency Therefore in designing an ORC system that receives heat from a single phase heat source, a trade-off between high cycle efficiency with low heat recovery and low cycle efficiency with high heat recovery exists. Accordingly, there should be some optimum point, where, the size and cost of the heat exchangers are reduced and cycle, heat recovery efficiency optimized. Using cycle efficiency and overall conversion efficiency as shown in figure 51, this point can also be estimated where the efficiency curves intersect. Thus, the ORC system designer has to make a compromise between maximising power recovery and minimising cost per unit output. 87PDF Image | study of ORC with the expansion process twin screw machines
