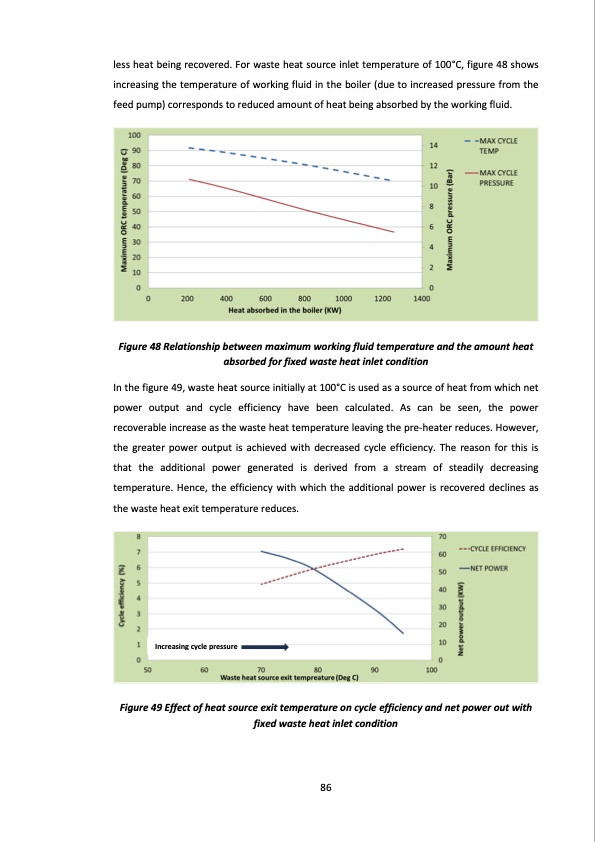

Text from PDF Page: 096
less heat being recovered. For waste heat source inlet temperature of 100°C, figure 48 shows increasing the temperature of working fluid in the boiler (due to increased pressure from the feed pump) corresponds to reduced amount of heat being absorbed by the working fluid. Figure 48 Relationship between maximum working fluid temperature and the amount heat absorbed for fixed waste heat inlet condition In the figure 49, waste heat source initially at 100°C is used as a source of heat from which net power output and cycle efficiency have been calculated. As can be seen, the power recoverable increase as the waste heat temperature leaving the pre-heater reduces. However, the greater power output is achieved with decreased cycle efficiency. The reason for this is that the additional power generated is derived from a stream of steadily decreasing temperature. Hence, the efficiency with which the additional power is recovered declines as the waste heat exit temperature reduces. Increasing cycle pressure Figure 49 Effect of heat source exit temperature on cycle efficiency and net power out with fixed waste heat inlet condition 86PDF Image | study of ORC with the expansion process twin screw machines
