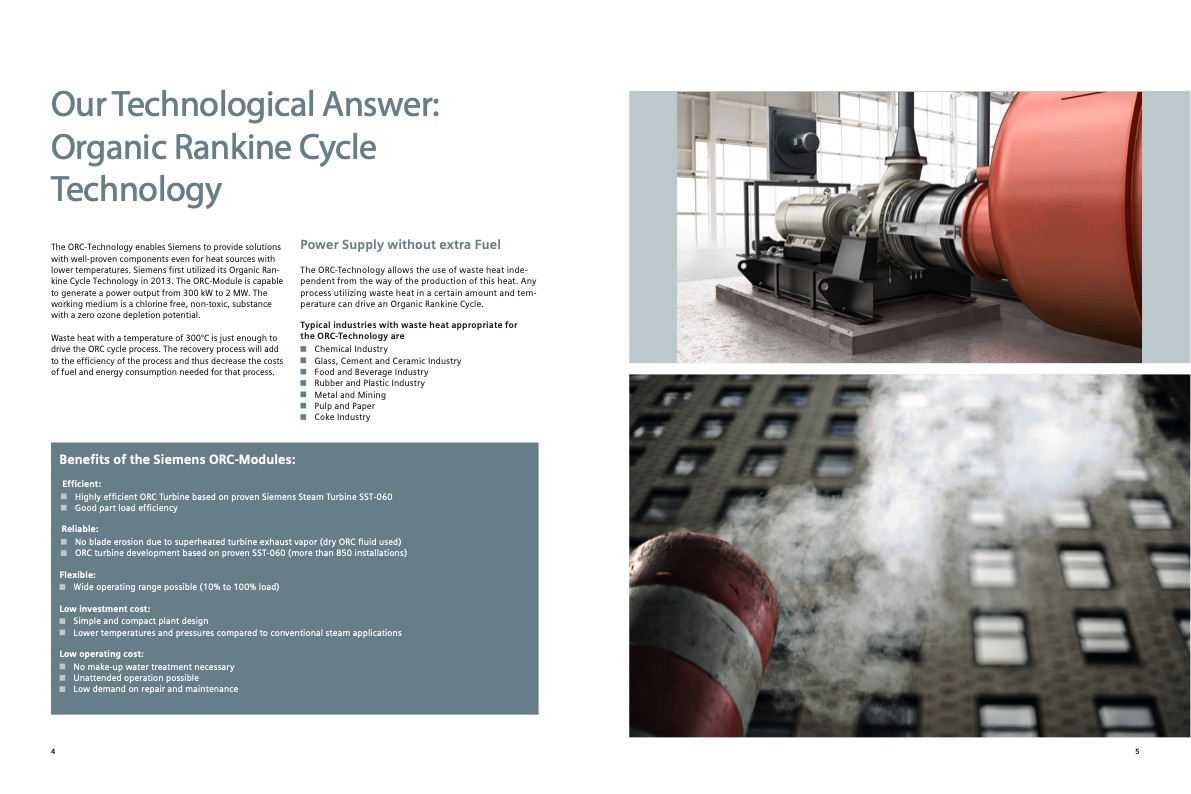

Our Technological Answer: Organic Rankine Cycle Technology The ORC-Technology enables Siemens to provide solutions with well-proven components even for heat sources with lower temperatures. Siemens first utilized its Organic Ran- kine Cycle Technology in 2013. The ORC-Module is capable to generate a power output from 300 kW to 2 MW. The working medium is a chlorine free, non-toxic, substance with a zero ozone depletion potential. Waste heat with a temperature of 300°C is just enough to drive the ORC cycle process. The recovery process will add to the efficiency of the process and thus decrease the costs of fuel and energy consumption needed for that process. Power Supply without extra Fuel The ORC-Technology allows the use of waste heat inde- pendent from the way of the production of this heat. Any process utilizing waste heat in a certain amount and tem- perature can drive an Organic Rankine Cycle. Typical industries with waste heat appropriate for the ORC-Technology are Chemical Industry Glass, Cement and Ceramic Industry Food and Beverage Industry Rubber and Plastic Industry Metal and Mining Pulp and Paper Coke Industry Benefits of the Siemens ORC-Modules: Efficient: Highly efficient ORC Turbine based on proven Siemens Steam Turbine SST-060 Good part load efficiency Reliable: No blade erosion due to superheated turbine exhaust vapor (dry ORC fluid used) ORC turbine development based on proven SST-060 (more than 850 installations) Flexible: Wide operating range possible (10% to 100% load) Low investment cost: Simple and compact plant design Lower temperatures and pressures compared to conventional steam applications Low operating cost: No make-up water treatment necessary Unattended operation possible Low demand on repair and maintenance 45PDF Image | Waste Heat Recovery with ORC
