PDF Publication Title:
Text from PDF Page: 121

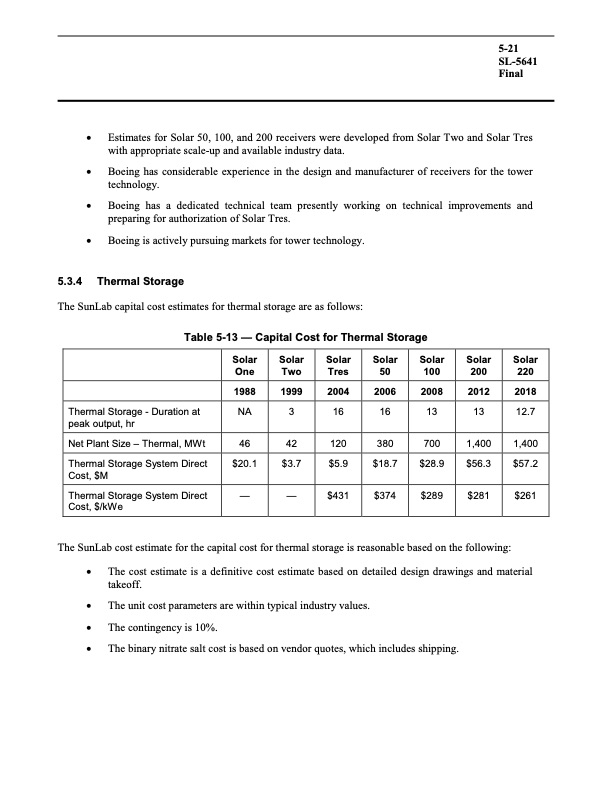

5.3.4 Boeing is actively pursuing markets for tower technology. Thermal Storage • • • • 5-21 SL-5641 Final Estimates for Solar 50, 100, and 200 receivers were developed from Solar Two and Solar Tres with appropriate scale-up and available industry data. Boeing has considerable experience in the design and manufacturer of receivers for the tower technology. Boeing has a dedicated technical team presently working on technical improvements and preparing for authorization of Solar Tres. The SunLab capital cost estimates for thermal storage are as follows: Table 5-13 — Capital Cost for Thermal Storage Thermal Storage - Duration at peak output, hr Net Plant Size – Thermal, MWt Thermal Storage System Direct Cost, $M Thermal Storage System Direct Cost, $/kWe Solar Solar Solar One Two Tres 1988 1999 2004 NA 3 16 46 42 120 $20.1 $3.7 $5.9 — — $431 Solar Solar 50 100 2006 2008 16 13 380 700 $18.7 $28.9 $374 $289 Solar Solar 200 220 2012 2018 13 12.7 1,400 1,400 $56.3 $57.2 $281 $261 The SunLab cost estimate for the capital cost for thermal storage is reasonable based on the following: • The cost estimate is a definitive cost estimate based on detailed design drawings and material takeoff. • The unit cost parameters are within typical industry values. • The contingency is 10%. • The binary nitrate salt cost is based on vendor quotes, which includes shipping.PDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
PDF Search Title:
Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance ForecastsOriginal File Name Searched:
34440.pdfDIY PDF Search: Google It | Yahoo | Bing
