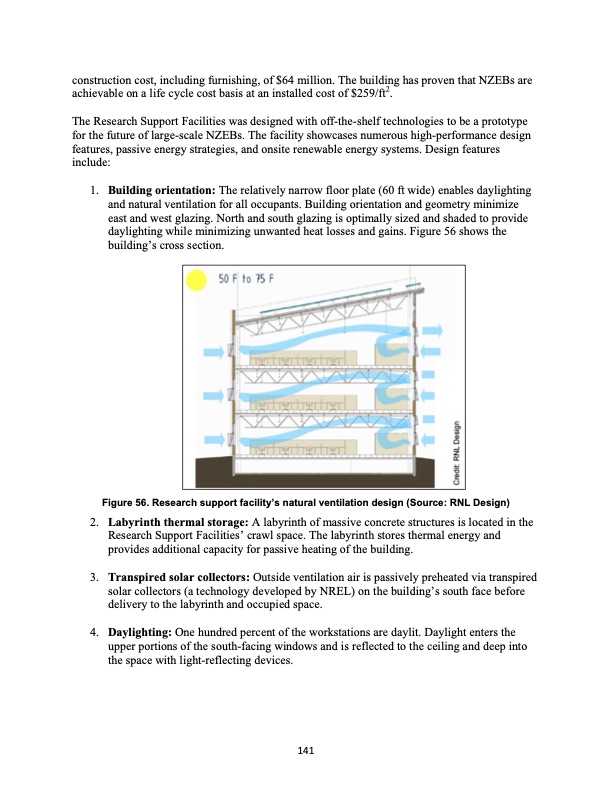

construction cost, including furnishing, of $64 million. The building has proven that NZEBs are achievable on a life cycle cost basis at an installed cost of $259/ft2. The Research Support Facilities was designed with off-the-shelf technologies to be a prototype for the future of large-scale NZEBs. The facility showcases numerous high-performance design features, passive energy strategies, and onsite renewable energy systems. Design features include: 1. Building orientation: The relatively narrow floor plate (60 ft wide) enables daylighting and natural ventilation for all occupants. Building orientation and geometry minimize east and west glazing. North and south glazing is optimally sized and shaded to provide daylighting while minimizing unwanted heat losses and gains. Figure 56 shows the building’s cross section. Figure 56. Research support facility’s natural ventilation design (Source: RNL Design) 2. Labyrinth thermal storage: A labyrinth of massive concrete structures is located in the Research Support Facilities’ crawl space. The labyrinth stores thermal energy and provides additional capacity for passive heating of the building. 3. Transpired solar collectors: Outside ventilation air is passively preheated via transpired solar collectors (a technology developed by NREL) on the building’s south face before delivery to the labyrinth and occupied space. 4. Daylighting: One hundred percent of the workstations are daylit. Daylight enters the upper portions of the south-facing windows and is reflected to the ceiling and deep into the space with light-reflecting devices. 141PDF Image | 4th Annual Chena Renewable Energy Fair
