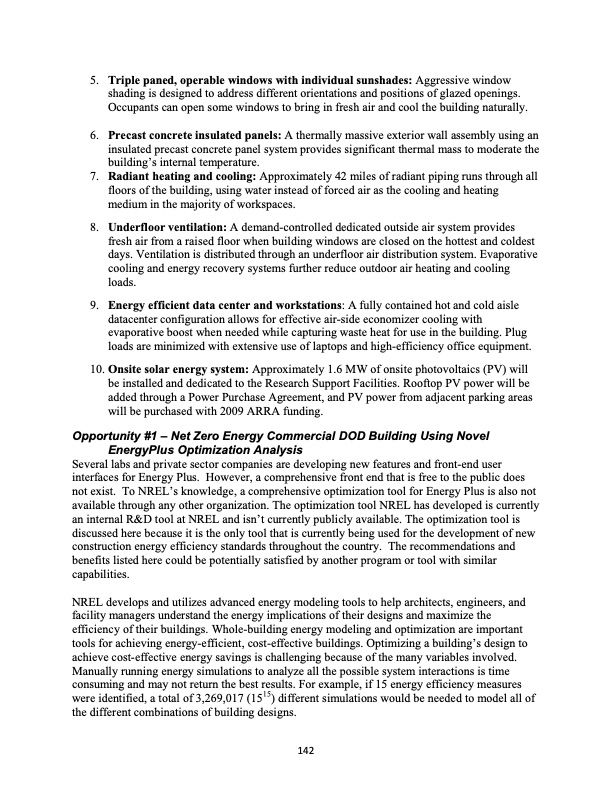

5. Triple paned, operable windows with individual sunshades: Aggressive window shading is designed to address different orientations and positions of glazed openings. Occupants can open some windows to bring in fresh air and cool the building naturally. 6. Precast concrete insulated panels: A thermally massive exterior wall assembly using an insulated precast concrete panel system provides significant thermal mass to moderate the building’s internal temperature. 7. Radiant heating and cooling: Approximately 42 miles of radiant piping runs through all floors of the building, using water instead of forced air as the cooling and heating medium in the majority of workspaces. 8. Underfloor ventilation: A demand-controlled dedicated outside air system provides fresh air from a raised floor when building windows are closed on the hottest and coldest days. Ventilation is distributed through an underfloor air distribution system. Evaporative cooling and energy recovery systems further reduce outdoor air heating and cooling loads. 9. Energy efficient data center and workstations: A fully contained hot and cold aisle datacenter configuration allows for effective air-side economizer cooling with evaporative boost when needed while capturing waste heat for use in the building. Plug loads are minimized with extensive use of laptops and high-efficiency office equipment. 10. Onsite solar energy system: Approximately 1.6 MW of onsite photovoltaics (PV) will be installed and dedicated to the Research Support Facilities. Rooftop PV power will be added through a Power Purchase Agreement, and PV power from adjacent parking areas will be purchased with 2009 ARRA funding. Opportunity #1 – Net Zero Energy Commercial DOD Building Using Novel EnergyPlus Optimization Analysis Several labs and private sector companies are developing new features and front-end user interfaces for Energy Plus. However, a comprehensive front end that is free to the public does not exist. To NREL’s knowledge, a comprehensive optimization tool for Energy Plus is also not available through any other organization. The optimization tool NREL has developed is currently an internal R&D tool at NREL and isn’t currently publicly available. The optimization tool is discussed here because it is the only tool that is currently being used for the development of new construction energy efficiency standards throughout the country. The recommendations and benefits listed here could be potentially satisfied by another program or tool with similar capabilities. NREL develops and utilizes advanced energy modeling tools to help architects, engineers, and facility managers understand the energy implications of their designs and maximize the efficiency of their buildings. Whole-building energy modeling and optimization are important tools for achieving energy-efficient, cost-effective buildings. Optimizing a building’s design to achieve cost-effective energy savings is challenging because of the many variables involved. Manually running energy simulations to analyze all the possible system interactions is time consuming and may not return the best results. For example, if 15 energy efficiency measures were identified, a total of 3,269,017 (1515) different simulations would be needed to model all of the different combinations of building designs. 142PDF Image | 4th Annual Chena Renewable Energy Fair
