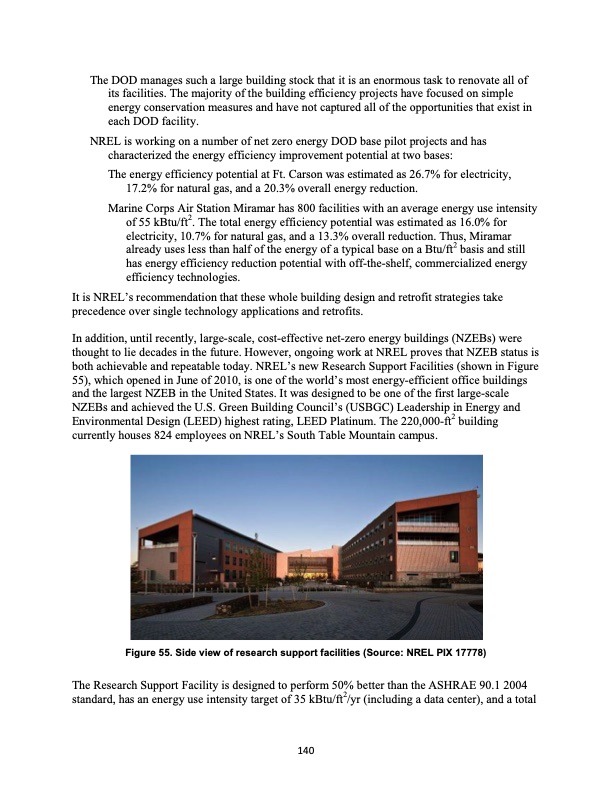

The DOD manages such a large building stock that it is an enormous task to renovate all of its facilities. The majority of the building efficiency projects have focused on simple energy conservation measures and have not captured all of the opportunities that exist in each DOD facility. NREL is working on a number of net zero energy DOD base pilot projects and has characterized the energy efficiency improvement potential at two bases: The energy efficiency potential at Ft. Carson was estimated as 26.7% for electricity, 17.2% for natural gas, and a 20.3% overall energy reduction. Marine Corps Air Station Miramar has 800 facilities with an average energy use intensity of 55 kBtu/ft2. The total energy efficiency potential was estimated as 16.0% for electricity, 10.7% for natural gas, and a 13.3% overall reduction. Thus, Miramar already uses less than half of the energy of a typical base on a Btu/ft2 basis and still has energy efficiency reduction potential with off-the-shelf, commercialized energy efficiency technologies. It is NREL’s recommendation that these whole building design and retrofit strategies take precedence over single technology applications and retrofits. In addition, until recently, large-scale, cost-effective net-zero energy buildings (NZEBs) were thought to lie decades in the future. However, ongoing work at NREL proves that NZEB status is both achievable and repeatable today. NREL’s new Research Support Facilities (shown in Figure 55), which opened in June of 2010, is one of the world’s most energy-efficient office buildings and the largest NZEB in the United States. It was designed to be one of the first large-scale NZEBs and achieved the U.S. Green Building Council’s (USBGC) Leadership in Energy and Environmental Design (LEED) highest rating, LEED Platinum. The 220,000-ft2 building currently houses 824 employees on NREL’s South Table Mountain campus. Figure 55. Side view of research support facilities (Source: NREL PIX 17778) The Research Support Facility is designed to perform 50% better than the ASHRAE 90.1 2004 standard, has an energy use intensity target of 35 kBtu/ft2/yr (including a data center), and a total 140PDF Image | 4th Annual Chena Renewable Energy Fair
