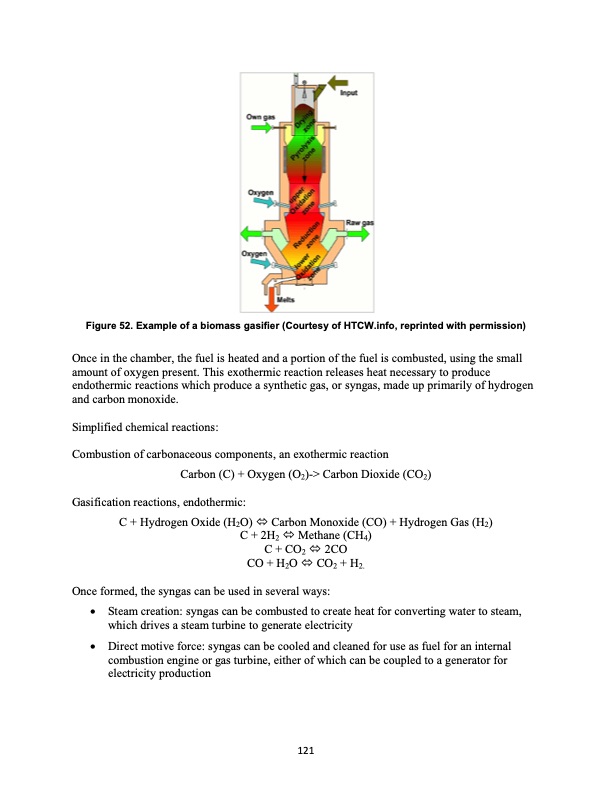

Figure 52. Example of a biomass gasifier (Courtesy of HTCW.info, reprinted with permission) Once in the chamber, the fuel is heated and a portion of the fuel is combusted, using the small amount of oxygen present. This exothermic reaction releases heat necessary to produce endothermic reactions which produce a synthetic gas, or syngas, made up primarily of hydrogen and carbon monoxide. Simplified chemical reactions: Combustion of carbonaceous components, an exothermic reaction Carbon (C) + Oxygen (O2)-> Carbon Dioxide (CO2) Gasification reactions, endothermic: C + Hydrogen Oxide (H2O)Carbon Monoxide (CO) + Hydrogen Gas (H2) C + 2H2 Methane (CH4) C + CO22CO CO + H2OCO2 + H2. Once formed, the syngas can be used in several ways: • Steam creation: syngas can be combusted to create heat for converting water to steam, which drives a steam turbine to generate electricity • Direct motive force: syngas can be cooled and cleaned for use as fuel for an internal combustion engine or gas turbine, either of which can be coupled to a generator for electricity production 121PDF Image | 4th Annual Chena Renewable Energy Fair
