Text from PDF Page: 108

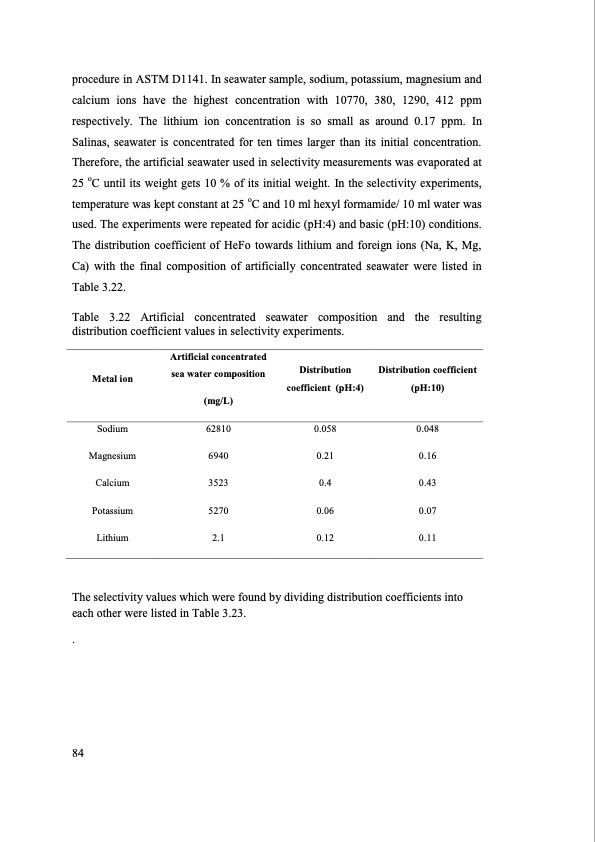

procedure in ASTM D1141. In seawater sample, sodium, potassium, magnesium and calcium ions have the highest concentration with 10770, 380, 1290, 412 ppm respectively. The lithium ion concentration is so small as around 0.17 ppm. In Salinas, seawater is concentrated for ten times larger than its initial concentration. Therefore, the artificial seawater used in selectivity measurements was evaporated at 25 oC until its weight gets 10 % of its initial weight. In the selectivity experiments, temperature was kept constant at 25 oC and 10 ml hexyl formamide/ 10 ml water was used. The experiments were repeated for acidic (pH:4) and basic (pH:10) conditions. The distribution coefficient of HeFo towards lithium and foreign ions (Na, K, Mg, Ca) with the final composition of artificially concentrated seawater were listed in Table 3.22. Table 3.22 Artificial concentrated seawater composition and the resulting distribution coefficient values in selectivity experiments. Metal ion Sodium Magnesium Calcium Potassium Lithium Artificial concentrated sea water composition (mg/L) Distribution coefficient (pH:4) Distribution coefficient (pH:10) 0.048 0.16 0.43 0.07 0.11 62810 0.058 6940 0.21 3523 0.4 5270 0.06 2.1 0.12 The selectivity values which were found by dividing distribution coefficients into each other were listed in Table 3.23. . 84PDF Image | SEPARATION OF LITHIUM FROM BRINES
