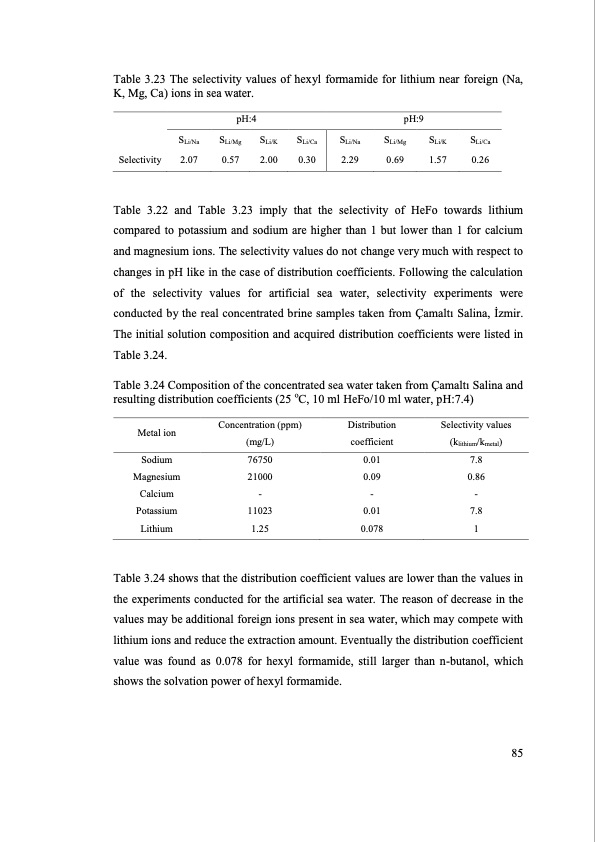

Table 3.23 The selectivity values of hexyl formamide for lithium near foreign (Na, K, Mg, Ca) ions in sea water. pH:4 SLi/Na SLi/Mg Selectivity 2.07 0.57 SLi/K 2.00 SLi/Ca 0.30 SLi/Na 2.29 pH:9 SLi/Mg SLi/K SLi/Ca 0.69 1.57 0.26 Table 3.22 and Table 3.23 imply that the selectivity of HeFo towards lithium compared to potassium and sodium are higher than 1 but lower than 1 for calcium and magnesium ions. The selectivity values do not change very much with respect to changes in pH like in the case of distribution coefficients. Following the calculation of the selectivity values for artificial sea water, selectivity experiments were conducted by the real concentrated brine samples taken from Çamaltı Salina, İzmir. The initial solution composition and acquired distribution coefficients were listed in Table 3.24. Table 3.24 Composition of the concentrated sea water taken from Çamaltı Salina and resulting distribution coefficients (25 oC, 10 ml HeFo/10 ml water, pH:7.4) Metal ion Sodium Magnesium Calcium Potassium Lithium Concentration (ppm) (mg/L) 76750 21000 - 11023 1.25 Distribution Selectivity values coefficient (klithium/kmetal) 0.01 7.8 0.09 0.86 - - 0.01 7.8 0.078 1 Table 3.24 shows that the distribution coefficient values are lower than the values in the experiments conducted for the artificial sea water. The reason of decrease in the values may be additional foreign ions present in sea water, which may compete with lithium ions and reduce the extraction amount. Eventually the distribution coefficient value was found as 0.078 for hexyl formamide, still larger than n-butanol, which shows the solvation power of hexyl formamide. 85PDF Image | SEPARATION OF LITHIUM FROM BRINES
