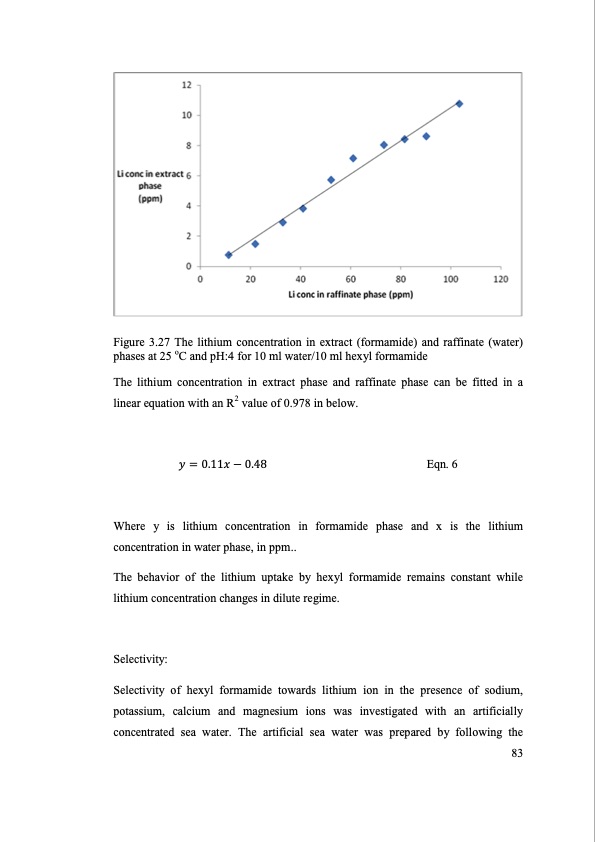

Figure 3.27 The lithium concentration in extract (formamide) and raffinate (water) phases at 25 oC and pH:4 for 10 ml water/10 ml hexyl formamide The lithium concentration in extract phase and raffinate phase can be fitted in a linear equation with an R2 value of 0.978 in below. 𝑦 = 0.11𝑥 − 0.48 Eqn. 6 Where y is lithium concentration in formamide phase and x is the lithium concentration in water phase, in ppm.. The behavior of the lithium uptake by hexyl formamide remains constant while lithium concentration changes in dilute regime. Selectivity: Selectivity of hexyl formamide towards lithium ion in the presence of sodium, potassium, calcium and magnesium ions was investigated with an artificially concentrated sea water. The artificial sea water was prepared by following the 83PDF Image | SEPARATION OF LITHIUM FROM BRINES
