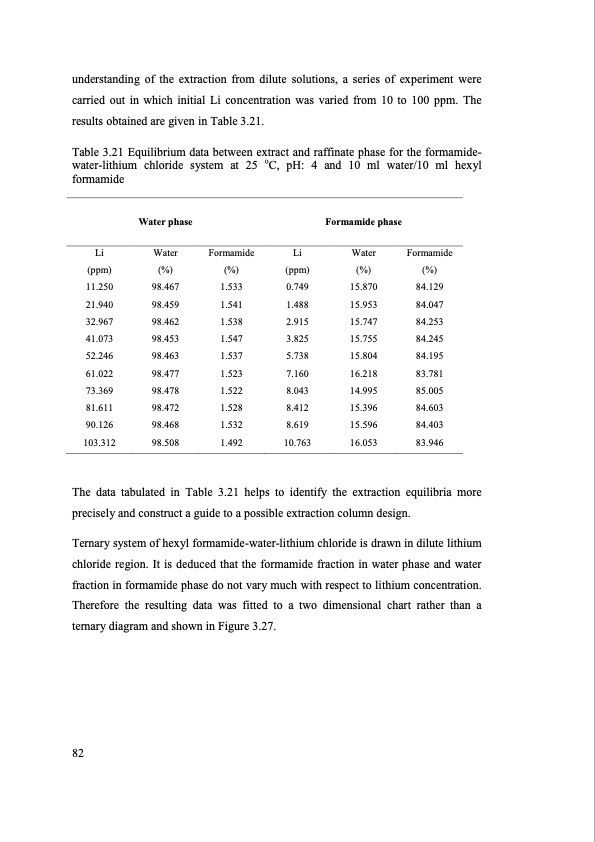

Text from PDF Page: 106
understanding of the extraction from dilute solutions, a series of experiment were carried out in which initial Li concentration was varied from 10 to 100 ppm. The results obtained are given in Table 3.21. Table 3.21 Equilibrium data between extract and raffinate phase for the formamide- water-lithium chloride system at 25 oC, pH: 4 and 10 ml water/10 ml hexyl formamide Water phase Li Water Formamide (ppm) (%) (%) 11.250 98.467 1.533 21.940 98.459 1.541 32.967 98.462 1.538 41.073 98.453 1.547 52.246 98.463 1.537 61.022 98.477 1.523 73.369 98.478 1.522 81.611 98.472 1.528 90.126 98.468 1.532 103.312 98.508 1.492 Formamide phase Li Water (ppm) (%) 0.749 15.870 1.488 15.953 2.915 15.747 3.825 15.755 5.738 15.804 7.160 16.218 8.043 14.995 8.412 15.396 8.619 15.596 10.763 16.053 Formamide (%) 84.129 84.047 84.253 84.245 84.195 83.781 85.005 84.603 84.403 83.946 The data tabulated in Table 3.21 helps to identify the extraction equilibria more precisely and construct a guide to a possible extraction column design. Ternary system of hexyl formamide-water-lithium chloride is drawn in dilute lithium chloride region. It is deduced that the formamide fraction in water phase and water fraction in formamide phase do not vary much with respect to lithium concentration. Therefore the resulting data was fitted to a two dimensional chart rather than a ternary diagram and shown in Figure 3.27. 82PDF Image | SEPARATION OF LITHIUM FROM BRINES
