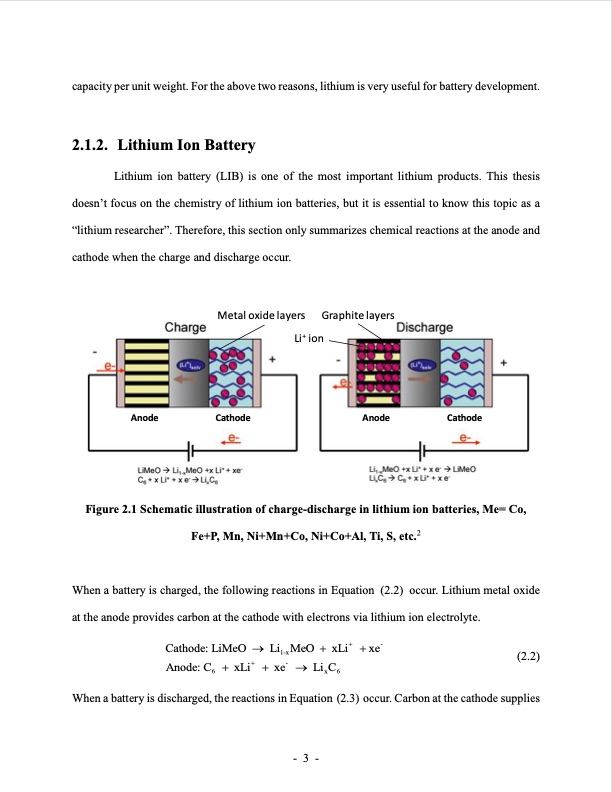

capacity per unit weight. For the above two reasons, lithium is very useful for battery development. 2.1.2. Lithium Ion Battery Lithium ion battery (LIB) is one of the most important lithium products. This thesis doesn’t focus on the chemistry of lithium ion batteries, but it is essential to know this topic as a “lithium researcher”. Therefore, this section only summarizes chemical reactions at the anode and cathode when the charge and discharge occur. Metal oxide layers Graphite layers Li+ ion Anode Cathode Anode Cathode Figure 2.1 Schematic illustration of charge-discharge in lithium ion batteries, Me= Co, Fe+P, Mn, Ni+Mn+Co, Ni+Co+Al, Ti, S, etc.2 When a battery is charged, the following reactions in Equation (2.2) occur. Lithium metal oxide at the anode provides carbon at the cathode with electrons via lithium ion electrolyte. (2.2) When a battery is discharged, the reactions in Equation (2.3) occur. Carbon at the cathode supplies Cathode: LiMeO → Li1-x MeO + xLi+ + xe- Anode: C6 + xLi+ + xe- → LixC6 -3-PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
