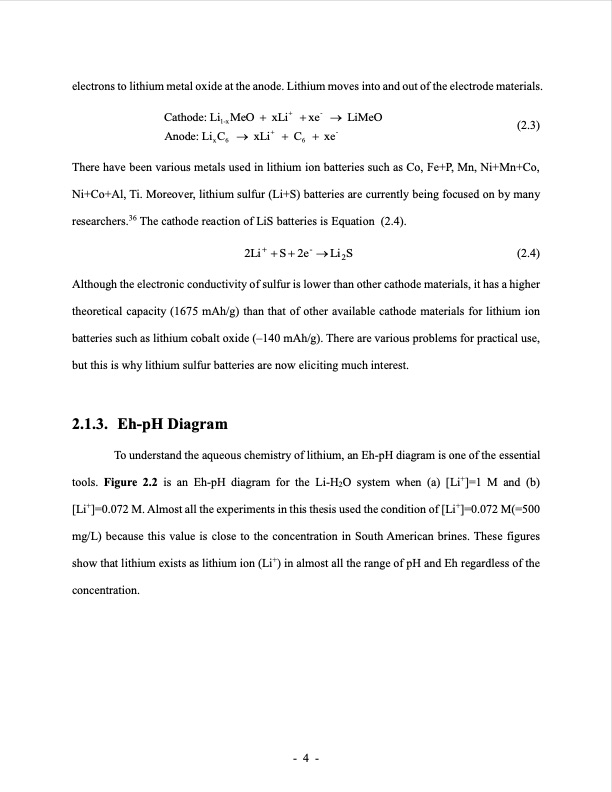

Text from PDF Page: 028
electrons to lithium metal oxide at the anode. Lithium moves into and out of the electrode materials. (2.3) There have been various metals used in lithium ion batteries such as Co, Fe+P, Mn, Ni+Mn+Co, Ni+Co+Al, Ti. Moreover, lithium sulfur (Li+S) batteries are currently being focused on by many researchers.36 The cathode reaction of LiS batteries is Equation (2.4). 2Li+ +S+2e- →Li2S (2.4) Although the electronic conductivity of sulfur is lower than other cathode materials, it has a higher theoretical capacity (1675 mAh/g) than that of other available cathode materials for lithium ion batteries such as lithium cobalt oxide (–140 mAh/g). There are various problems for practical use, but this is why lithium sulfur batteries are now eliciting much interest. 2.1.3. Eh-pHDiagram To understand the aqueous chemistry of lithium, an Eh-pH diagram is one of the essential tools. Figure 2.2 is an Eh-pH diagram for the Li-H2O system when (a) [Li+]=1 M and (b) [Li+]=0.072 M. Almost all the experiments in this thesis used the condition of [Li+]=0.072 M(=500 mg/L) because this value is close to the concentration in South American brines. These figures show that lithium exists as lithium ion (Li+) in almost all the range of pH and Eh regardless of the concentration. Cathode:Li1-xMeO + xLi+ +xe- → LiMeO Anode: LixC6 → xLi+ + C6 + xe- -4-PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
