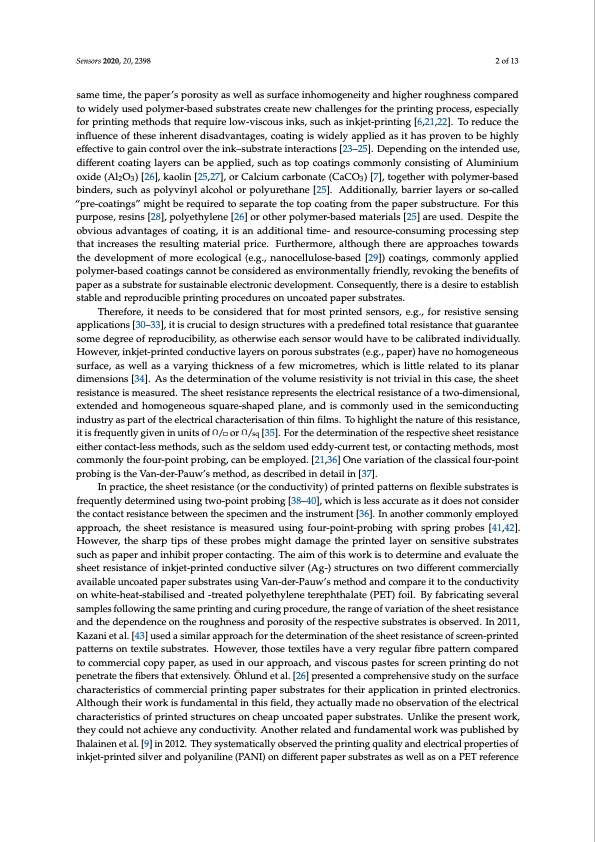

Text from PDF Page: 002
Sensors 2020, 20, 2398 2 of 13 same time, the paper’s porosity as well as surface inhomogeneity and higher roughness compared to widely used polymer-based substrates create new challenges for the printing process, especially for printing methods that require low-viscous inks, such as inkjet-printing [6,21,22]. To reduce the influence of these inherent disadvantages, coating is widely applied as it has proven to be highly effective to gain control over the ink–substrate interactions [23–25]. Depending on the intended use, different coating layers can be applied, such as top coatings commonly consisting of Aluminium oxide (Al2O3) [26], kaolin [25,27], or Calcium carbonate (CaCO3) [7], together with polymer-based binders, such as polyvinyl alcohol or polyurethane [25]. Additionally, barrier layers or so-called “pre-coatings” might be required to separate the top coating from the paper substructure. For this purpose, resins [28], polyethylene [26] or other polymer-based materials [25] are used. Despite the obvious advantages of coating, it is an additional time- and resource-consuming processing step that increases the resulting material price. Furthermore, although there are approaches towards the development of more ecological (e.g., nanocellulose-based [29]) coatings, commonly applied polymer-based coatings cannot be considered as environmentally friendly, revoking the benefits of paper as a substrate for sustainable electronic development. Consequently, there is a desire to establish stable and reproducible printing procedures on uncoated paper substrates. Therefore, it needs to be considered that for most printed sensors, e.g., for resistive sensing applications [30–33], it is crucial to design structures with a predefined total resistance that guarantee some degree of reproducibility, as otherwise each sensor would have to be calibrated individually. However, inkjet-printed conductive layers on porous substrates (e.g., paper) have no homogeneous surface, as well as a varying thickness of a few micrometres, which is little related to its planar dimensions [34]. As the determination of the volume resistivity is not trivial in this case, the sheet resistance is measured. The sheet resistance represents the electrical resistance of a two-dimensional, extended and homogeneous square-shaped plane, and is commonly used in the semiconducting industry as part of the electrical characterisation of thin films. To highlight the nature of this resistance, it is frequently given in units of Ω/ or Ω/sq [35]. For the determination of the respective sheet resistance either contact-less methods, such as the seldom used eddy-current test, or contacting methods, most commonly the four-point probing, can be employed. [21,36] One variation of the classical four-point probing is the Van-der-Pauw’s method, as described in detail in [37]. In practice, the sheet resistance (or the conductivity) of printed patterns on flexible substrates is frequently determined using two-point probing [38–40], which is less accurate as it does not consider the contact resistance between the specimen and the instrument [36]. In another commonly employed approach, the sheet resistance is measured using four-point-probing with spring probes [41,42]. However, the sharp tips of these probes might damage the printed layer on sensitive substrates such as paper and inhibit proper contacting. The aim of this work is to determine and evaluate the sheet resistance of inkjet-printed conductive silver (Ag-) structures on two different commercially available uncoated paper substrates using Van-der-Pauw’s method and compare it to the conductivity on white-heat-stabilised and -treated polyethylene terephthalate (PET) foil. By fabricating several samples following the same printing and curing procedure, the range of variation of the sheet resistance and the dependence on the roughness and porosity of the respective substrates is observed. In 2011, Kazani et al. [43] used a similar approach for the determination of the sheet resistance of screen-printed patterns on textile substrates. However, those textiles have a very regular fibre pattern compared to commercial copy paper, as used in our approach, and viscous pastes for screen printing do not penetrate the fibers that extensively. Öhlund et al. [26] presented a comprehensive study on the surface characteristics of commercial printing paper substrates for their application in printed electronics. Although their work is fundamental in this field, they actually made no observation of the electrical characteristics of printed structures on cheap uncoated paper substrates. Unlike the present work, they could not achieve any conductivity. Another related and fundamental work was published by Ihalainen et al. [9] in 2012. They systematically observed the printing quality and electrical properties of inkjet-printed silver and polyaniline (PANI) on different paper substrates as well as on a PET referencePDF Image | Inkjet-Printed Ag-Layers on Flexible, Uncoated Paper Substrates
