PDF Publication Title:
Text from PDF Page: 006

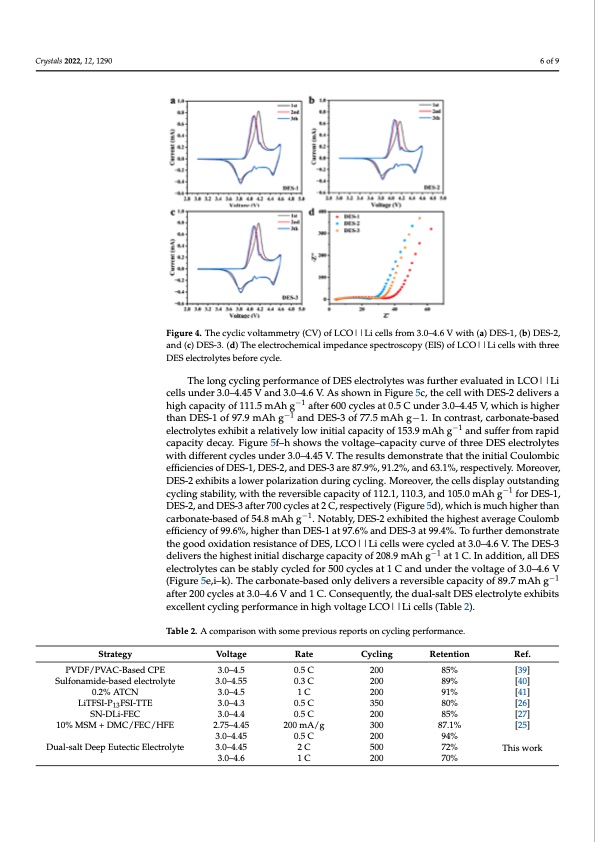

Crystals 2022, 12, x FOR PEER REVIEW 6 of 10 6 of 9 Figure 4. The cyclic voltammetry (CV) of LCO||Li cells from 3.0–4.6 V with (a) DES-1, (b) DES-2, Figure 4. The cyclic voltammetry (CV) of LCO||Li cells from 3.0–4.6 V with (a) DES-1, (b) DES-2, aand((cc))DES--3..((d))Theelectrochemiicalliimpedanccespecttrroscopy((EIIS))of LCO|||LLiicceellslswitithhtthrreee DESSeelleeccttrrollyttessbefforrecyclle.. Crystals 2022, 12, 1290 Strategy PVDF/PVAC-Based CPE Sulfonamide-based electrolyte 0.2% ATCN LiTFSI-P13FSI-TTE SN-DLi-FEC 10% MSM + DMC/FEC/HFE Dual-salt Deep Eutectic Electrolyte Voltage 3.0–4.5 3.0–4.55 3.0–4.5 3.0–4.3 3.0–4.4 2.75–4.45 3.0–4.45 3.0–4.45 3.0–4.6 Rate 0.5 C 0.3 C 1 C 0.5 C 0.5 C 200 mA/g 0.5 C 2 C 1 C Cycling Retention 200 85% 200 89% 200 91% 350 80% 200 85% 300 87.1% 200 94% 500 72% 200 70% Ref. [39] [40] [41] [26] [27] [25] This work The long cycling performance of DES electrolytes was further evaluated in LCO||Li Figure 5a,b demonstrates the rate performance of three DES electrolytes; the DES-1 cells under 3.0–4.45 V and 3.0–4.6 V. As shown in Figure 5c, the cell with DE−1S-2 delivers a delivers a reversible capacity of 170.9, 168.6, 162.8, 157.9, and 152.2 mAh g at 0.1 C, 0.2 high capacity of 111.5 mAh g−1 after 600 cycles at 0.5 C under 3.0–4.45 V, whic−h1 is higher C, 0.5 C, 1 C, and 2 C, respectively, and the capacity recovers to 170.3 mAh g after re- than DES-1 of 97.9 mAh g−1 and DES-3 of 77.5 mAh g−1. In contrast, carbonate-based turning to 0.1 C. DES-2 exhibits better rate performance than DES-1, with a relatively high electrolytes exhibit a relatively low initial capacity of 1−153.9 mAh g−1 and suffer from rapid capacityof188.3,181.1,171.9,165.8,and159.2mAhg ,at0.1C,0.2C,0.5C,1C,and2C, capacity decay. Figure 5f–h shows the voltage–capacity cu−r1ve of three DES electrolytes respectively, and the high capacity recovers to 187.8 mAh g after returning to 0.1 C. In with different cycles under 3.0–4.45 V. The results demonstrate that the initial Coulombic addition, the DES-3 delivers a reversible capacity of 178.8, 175.4, 169.8, 164.8, and 158.3 efficien−1cies of DES-1, DES-2, and DES-3 are 87.9%, 91.2%, and 63.1%, respectively. Moreover, mAh g at 0.1 C, 0.2 C, 0.5 C, 1 C, and 2 C, respectively, and the capacity recovers to 177.7 DES-2 −e1xhibits a lower polarization during cycling. Moreover, the cells display outstanding mAh g after returning to 0.1 C. By contrast, carbonate-based electrolyte only delivers a cycling stability, with the reversible capacity of 112.1, 110.3, and 1−105.0 mAh g−1 for DES-1, reversible capacity of 174.8, 170.4, 166.5, 161.1, and 153.6 mAh g at 0.1 C, 0.2 C, 0.5 C, 1 DES-2, and DES-3 after 700 cycles at 2 C, respectively (Figure 5d), which is much higher than C, and 2 C, respectively. The better rate performance of DES-2 is mainly attributed to the carbonate-based of 54.8 mAh g−1. Notably, DES-2 exhibited the highest average Coulomb higher Li+ transference number, which facilitates the rapid Li+ migration and reduces cell efficiency of 99.6%, higher than DES-1 at 97.6% and DES-3 at 99.4%. To further demonstrate polarization. the good oxidation resistance of DES, LCO||Li cells were cycled at 3.0–4.6 V. The DES-3 delivers the highest initial discharge capacity of 208.9 mAh g−1 at 1 C. In addition, all DES electrolytes can be stably cycled for 500 cycles at 1 C and under the voltage of 3.0–4.6 V (Figure 5e,i–k). The carbonate-based only delivers a reversible capacity of 89.7 mAh g−1 after 200 cycles at 3.0–4.6 V and 1 C. Consequently, the dual-salt DES electrolyte exhibits excellent cycling performance in high voltage LCO||Li cells (Table 2). Table 2. A comparison with some previous reports on cycling performance.PDF Image | Non-Flammable Dual-Salt Deep Eutectic Electrolyte
PDF Search Title:
Non-Flammable Dual-Salt Deep Eutectic ElectrolyteOriginal File Name Searched:
crystals-12-01290-v2.pdfDIY PDF Search: Google It | Yahoo | Bing
Product and Development Focus for Infinity Turbine
ORC Waste Heat Turbine and ORC System Build Plans: All turbine plans are $10,000 each. This allows you to build a system and then consider licensing for production after you have completed and tested a unit.Redox Flow Battery Technology: With the advent of the new USA tax credits for producing and selling batteries ($35/kW) we are focussing on a simple flow battery using shipping containers as the modular electrolyte storage units with tax credits up to $140,000 per system. Our main focus is on the salt battery. This battery can be used for both thermal and electrical storage applications. We call it the Cogeneration Battery or Cogen Battery. One project is converting salt (brine) based water conditioners to simultaneously produce power. In addition, there are many opportunities to extract Lithium from brine (salt lakes, groundwater, and producer water).Salt water or brine are huge sources for lithium. Most of the worlds lithium is acquired from a brine source. It's even in seawater in a low concentration. Brine is also a byproduct of huge powerplants, which can now use that as an electrolyte and a huge flow battery (which allows storage at the source).We welcome any business and equipment inquiries, as well as licensing our turbines for manufacturing.| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
