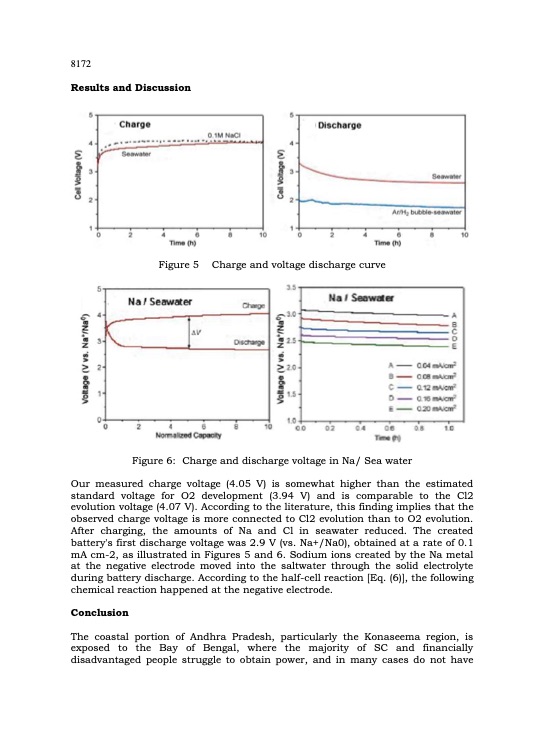

8172 Results and Discussion Figure 5 Charge and voltage discharge curve Figure 6: Charge and discharge voltage in Na/ Sea water Our measured charge voltage (4.05 V) is somewhat higher than the estimated standard voltage for O2 development (3.94 V) and is comparable to the Cl2 evolution voltage (4.07 V). According to the literature, this finding implies that the observed charge voltage is more connected to Cl2 evolution than to O2 evolution. After charging, the amounts of Na and Cl in seawater reduced. The created battery's first discharge voltage was 2.9 V (vs. Na+/Na0), obtained at a rate of 0.1 mA cm-2, as illustrated in Figures 5 and 6. Sodium ions created by the Na metal at the negative electrode moved into the saltwater through the solid electrolyte during battery discharge. According to the half-cell reaction [Eq. (6)], the following chemical reaction happened at the negative electrode. Conclusion The coastal portion of Andhra Pradesh, particularly the Konaseema region, is exposed to the Bay of Bengal, where the majority of SC and financially disadvantaged people struggle to obtain power, and in many cases do not havePDF Image | Electric lantern using sea water
