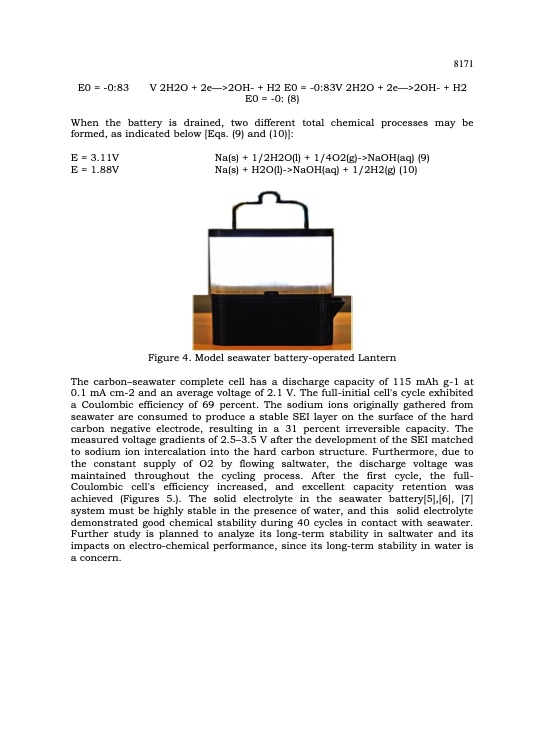

E0 = -0:83 V 2H2O + 2e3>2OH- + H2 E0 = -0:83V 2H2O + 2e3>2OH- + H2 E0 = -0: (8) When the battery is drained, two different total chemical processes may be formed, as indicated below [Eqs. (9) and (10)]: E = 3.11V Na(s) + 1/2H2O(l) + 1/4O2(g)->NaOH(aq) (9) E = 1.88V Na(s) + H2O(l)->NaOH(aq) + 1/2H2(g) (10) Figure 4. Model seawater battery-operated Lantern The carbon2seawater complete cell has a discharge capacity of 115 mAh g-1 at 0.1 mA cm-2 and an average voltage of 2.1 V. The full-initial cell's cycle exhibited a Coulombic efficiency of 69 percent. The sodium ions originally gathered from seawater are consumed to produce a stable SEI layer on the surface of the hard carbon negative electrode, resulting in a 31 percent irreversible capacity. The measured voltage gradients of 2.523.5 V after the development of the SEI matched to sodium ion intercalation into the hard carbon structure. Furthermore, due to the constant supply of O2 by flowing saltwater, the discharge voltage was maintained throughout the cycling process. After the first cycle, the full- Coulombic cell's efficiency increased, and excellent capacity retention was achieved (Figures 5.). The solid electrolyte in the seawater battery[5],[6], [7] system must be highly stable in the presence of water, and this solid electrolyte demonstrated good chemical stability during 40 cycles in contact with seawater. Further study is planned to analyze its long-term stability in saltwater and its impacts on electro-chemical performance, since its long-term stability in water is a concern. 8171PDF Image | Electric lantern using sea water
