PDF Publication Title:
Text from PDF Page: 008

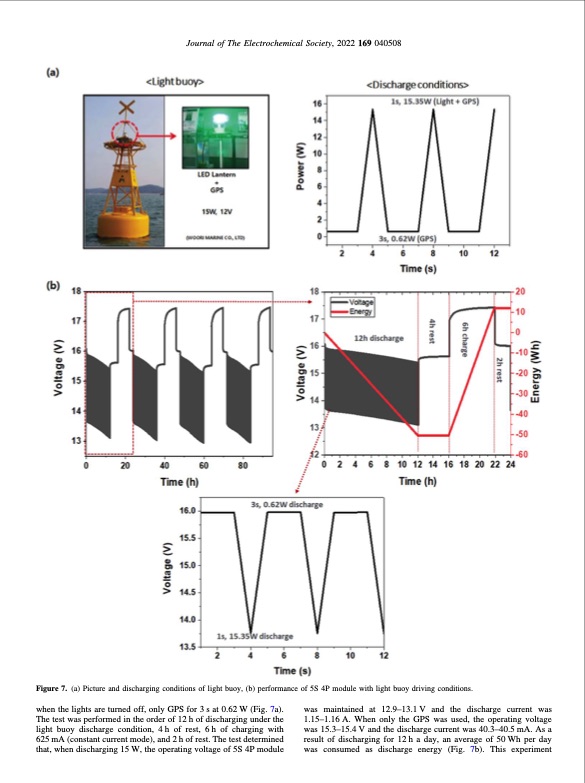

Journal of The Electrochemical Society, 2022 169 040508 Figure 7. (a) Picture and discharging conditions of light buoy, (b) performance of 5S 4P module with light buoy driving conditions. when the lights are turned off, only GPS for 3 s at 0.62 W (Fig. 7a). The test was performed in the order of 12 h of discharging under the light buoy discharge condition, 4 h of rest, 6 h of charging with 625 mA (constant current mode), and 2 h of rest. The test determined that, when discharging 15 W, the operating voltage of 5S 4P module was maintained at 12.9–13.1V and the discharge current was 1.15–1.16 A. When only the GPS was used, the operating voltage was 15.3–15.4 V and the discharge current was 40.3–40.5 mA. As a result of discharging for 12 h a day, an average of 50 Wh per day was consumed as discharge energy (Fig. 7b). This experimentPDF Image | Development of Rechargeable Seawater Battery
