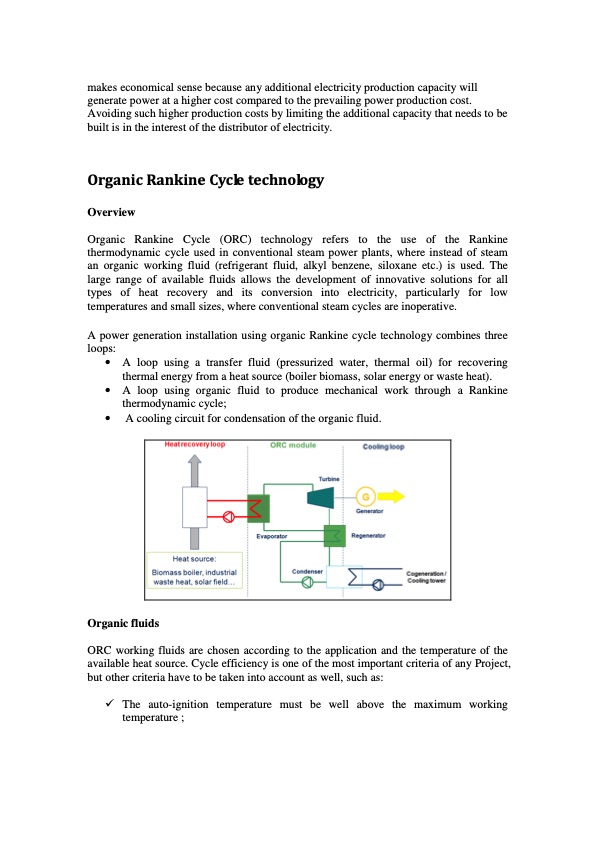

makes economical sense because any additional electricity production capacity will generate power at a higher cost compared to the prevailing power production cost. Avoiding such higher production costs by limiting the additional capacity that needs to be built is in the interest of the distributor of electricity. Organic Rankine Cycle technology Overview Organic Rankine Cycle (ORC) technology refers to the use of the Rankine thermodynamic cycle used in conventional steam power plants, where instead of steam an organic working fluid (refrigerant fluid, alkyl benzene, siloxane etc.) is used. The large range of available fluids allows the development of innovative solutions for all types of heat recovery and its conversion into electricity, particularly for low temperatures and small sizes, where conventional steam cycles are inoperative. A power generation installation using organic Rankine cycle technology combines three loops: • • • A loop using a transfer fluid (pressurized water, thermal oil) for recovering thermal energy from a heat source (boiler biomass, solar energy or waste heat). A loop using organic fluid to produce mechanical work through a Rankine thermodynamic cycle; A cooling circuit for condensation of the organic fluid. Organic fluids ORC working fluids are chosen according to the application and the temperature of the available heat source. Cycle efficiency is one of the most important criteria of any Project, but other criteria have to be taken into account as well, such as: The auto-ignition temperature must be well above the maximum working temperature ;PDF Image | Waste heat recovery projects using ORC
