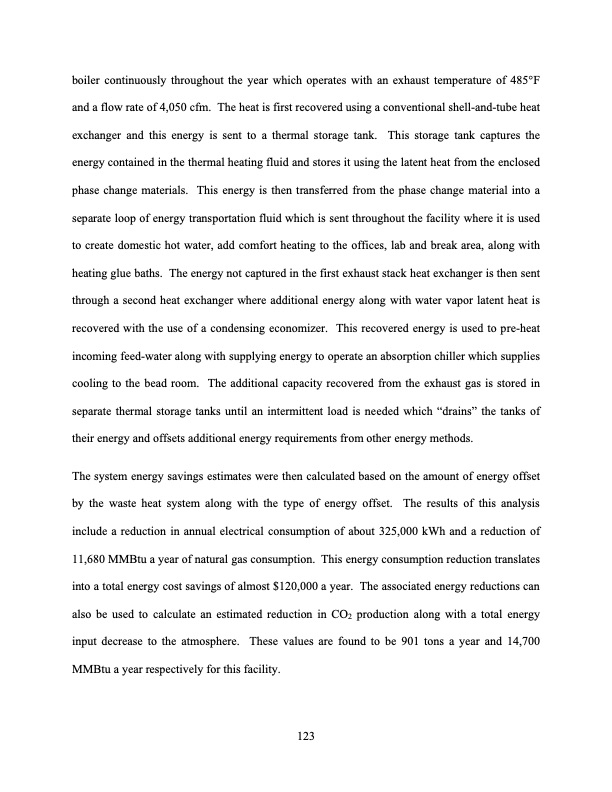

Text from PDF Page: 136
boiler continuously throughout the year which operates with an exhaust temperature of 485°F and a flow rate of 4,050 cfm. The heat is first recovered using a conventional shell-and-tube heat exchanger and this energy is sent to a thermal storage tank. This storage tank captures the energy contained in the thermal heating fluid and stores it using the latent heat from the enclosed phase change materials. This energy is then transferred from the phase change material into a separate loop of energy transportation fluid which is sent throughout the facility where it is used to create domestic hot water, add comfort heating to the offices, lab and break area, along with heating glue baths. The energy not captured in the first exhaust stack heat exchanger is then sent through a second heat exchanger where additional energy along with water vapor latent heat is recovered with the use of a condensing economizer. This recovered energy is used to pre-heat incoming feed-water along with supplying energy to operate an absorption chiller which supplies cooling to the bead room. The additional capacity recovered from the exhaust gas is stored in separate thermal storage tanks until an intermittent load is needed which “drains” the tanks of their energy and offsets additional energy requirements from other energy methods. The system energy savings estimates were then calculated based on the amount of energy offset by the waste heat system along with the type of energy offset. The results of this analysis include a reduction in annual electrical consumption of about 325,000 kWh and a reduction of 11,680 MMBtu a year of natural gas consumption. This energy consumption reduction translates into a total energy cost savings of almost $120,000 a year. The associated energy reductions can also be used to calculate an estimated reduction in CO2 production along with a total energy input decrease to the atmosphere. These values are found to be 901 tons a year and 14,700 MMBtu a year respectively for this facility. 123PDF Image | TUDY OF LOW-GRADE WASTE HEAT RECOVERY
