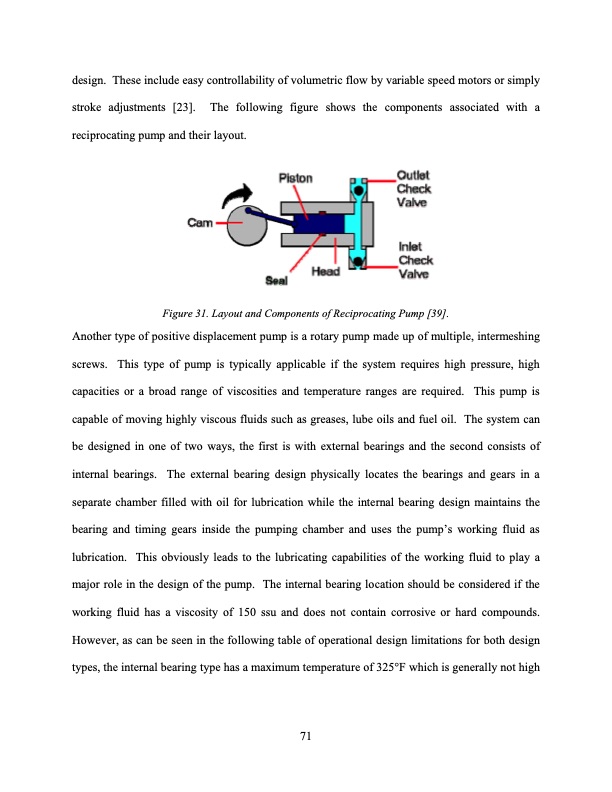

design. These include easy controllability of volumetric flow by variable speed motors or simply stroke adjustments [23]. The following figure shows the components associated with a reciprocating pump and their layout. Figure 31. Layout and Components of Reciprocating Pump [39]. Another type of positive displacement pump is a rotary pump made up of multiple, intermeshing screws. This type of pump is typically applicable if the system requires high pressure, high capacities or a broad range of viscosities and temperature ranges are required. This pump is capable of moving highly viscous fluids such as greases, lube oils and fuel oil. The system can be designed in one of two ways, the first is with external bearings and the second consists of internal bearings. The external bearing design physically locates the bearings and gears in a separate chamber filled with oil for lubrication while the internal bearing design maintains the bearing and timing gears inside the pumping chamber and uses the pump’s working fluid as lubrication. This obviously leads to the lubricating capabilities of the working fluid to play a major role in the design of the pump. The internal bearing location should be considered if the working fluid has a viscosity of 150 ssu and does not contain corrosive or hard compounds. However, as can be seen in the following table of operational design limitations for both design types, the internal bearing type has a maximum temperature of 325°F which is generally not high 71PDF Image | TUDY OF LOW-GRADE WASTE HEAT RECOVERY
