Text from PDF Page: 002

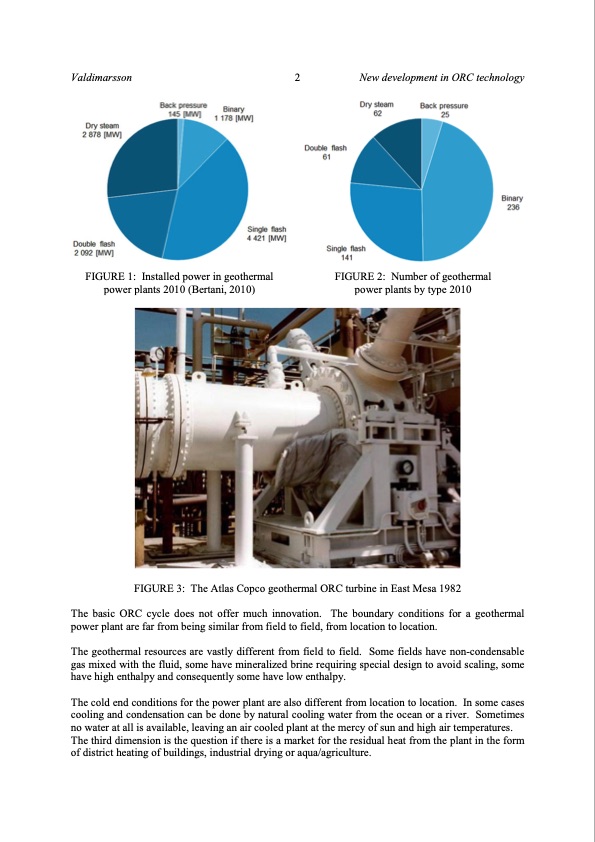

Valdimarsson 2 New development in ORC technology FIGURE 1: Installed power in geothermal power plants 2010 (Bertani, 2010) FIGURE 2: Number of geothermal power plants by type 2010 FIGURE 3: The Atlas Copco geothermal ORC turbine in East Mesa 1982 The basic ORC cycle does not offer much innovation. The boundary conditions for a geothermal power plant are far from being similar from field to field, from location to location. The geothermal resources are vastly different from field to field. Some fields have non-condensable gas mixed with the fluid, some have mineralized brine requiring special design to avoid scaling, some have high enthalpy and consequently some have low enthalpy. The cold end conditions for the power plant are also different from location to location. In some cases cooling and condensation can be done by natural cooling water from the ocean or a river. Sometimes no water at all is available, leaving an air cooled plant at the mercy of sun and high air temperatures. The third dimension is the question if there is a market for the residual heat from the plant in the form of district heating of buildings, industrial drying or aqua/agriculture.PDF Image | Medium-Enthalpy Geothermal Resources and Financial Aspects
