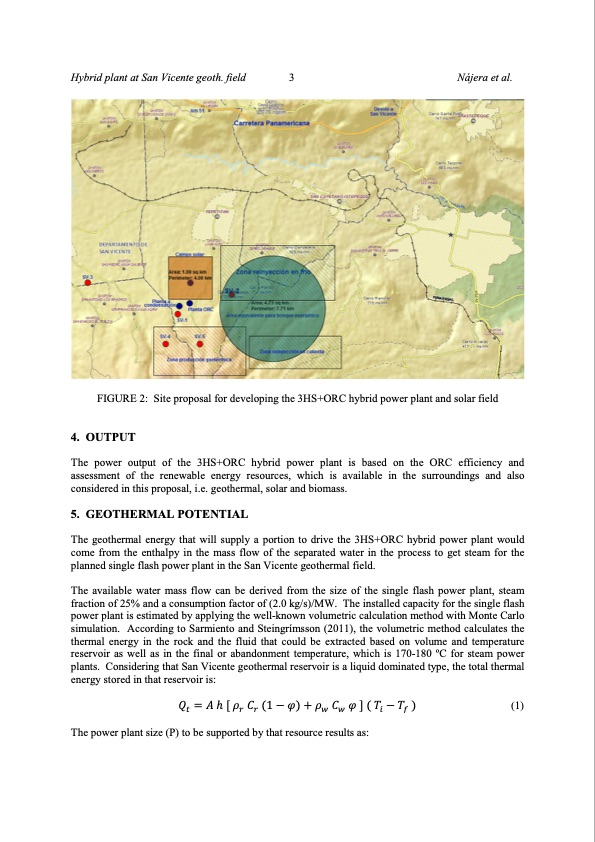

Hybrid plant at San Vicente geoth. field 3 NaΜjera et al. FIGURE 2: Site proposal for developing the 3HS+ORC hybrid power plant and solar field 4. OUTPUT The power output of the 3HS+ORC hybrid power plant is based on the ORC efficiency and assessment of the renewable energy resources, which is available in the surroundings and also considered in this proposal, i.e. geothermal, solar and biomass. 5. GEOTHERMAL POTENTIAL The geothermal energy that will supply a portion to drive the 3HS+ORC hybrid power plant would come from the enthalpy in the mass flow of the separated water in the process to get steam for the planned single flash power plant in the San Vicente geothermal field. The available water mass flow can be derived from the size of the single flash power plant, steam fraction of 25% and a consumption factor of (2.0 kg/s)/MW. The installed capacity for the single flash power plant is estimated by applying the well-known volumetric calculation method with Monte Carlo simulation. According to Sarmiento and SteingriΜmsson (2011), the volumetric method calculates the thermal energy in the rock and the fluid that could be extracted based on volume and temperature reservoir as well as in the final or abandonment temperature, which is 170-180 oC for steam power plants. Considering that San Vicente geothermal reservoir is a liquid dominated type, the total thermal energy stored in that reservoir is: ππ =π΄π΄h[ππ πΆπΆ (1βππ)+ππ πΆπΆ ππ](ππ βππ ) (1) π‘π‘πππππ€π€π€π€ππππ The power plant size (P) to be supported by that resource results as:PDF Image | HYBRID POWER PLANT USING THREE ENERGY RESOURCES
