Text from PDF Page: 002

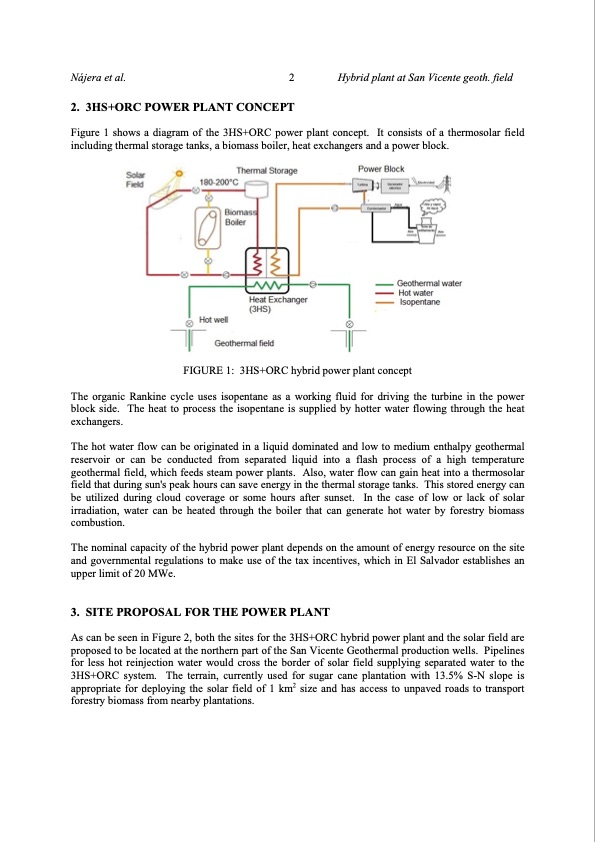

Nájera et al. 2 Hybrid plant at San Vicente geoth. field 2. 3HS+ORC POWER PLANT CONCEPT Figure 1 shows a diagram of the 3HS+ORC power plant concept. It consists of a thermosolar field including thermal storage tanks, a biomass boiler, heat exchangers and a power block. FIGURE 1: 3HS+ORC hybrid power plant concept The organic Rankine cycle uses isopentane as a working fluid for driving the turbine in the power block side. The heat to process the isopentane is supplied by hotter water flowing through the heat exchangers. The hot water flow can be originated in a liquid dominated and low to medium enthalpy geothermal reservoir or can be conducted from separated liquid into a flash process of a high temperature geothermal field, which feeds steam power plants. Also, water flow can gain heat into a thermosolar field that during sun's peak hours can save energy in the thermal storage tanks. This stored energy can be utilized during cloud coverage or some hours after sunset. In the case of low or lack of solar irradiation, water can be heated through the boiler that can generate hot water by forestry biomass combustion. The nominal capacity of the hybrid power plant depends on the amount of energy resource on the site and governmental regulations to make use of the tax incentives, which in El Salvador establishes an upper limit of 20 MWe. 3. SITE PROPOSAL FOR THE POWER PLANT As can be seen in Figure 2, both the sites for the 3HS+ORC hybrid power plant and the solar field are proposed to be located at the northern part of the San Vicente Geothermal production wells. Pipelines for less hot reinjection water would cross the border of solar field supplying separated water to the 3HS+ORC system. The terrain, currently used for sugar cane plantation with 13.5% S-N slope is appropriate for deploying the solar field of 1 km2 size and has access to unpaved roads to transport forestry biomass from nearby plantations.PDF Image | HYBRID POWER PLANT USING THREE ENERGY RESOURCES
