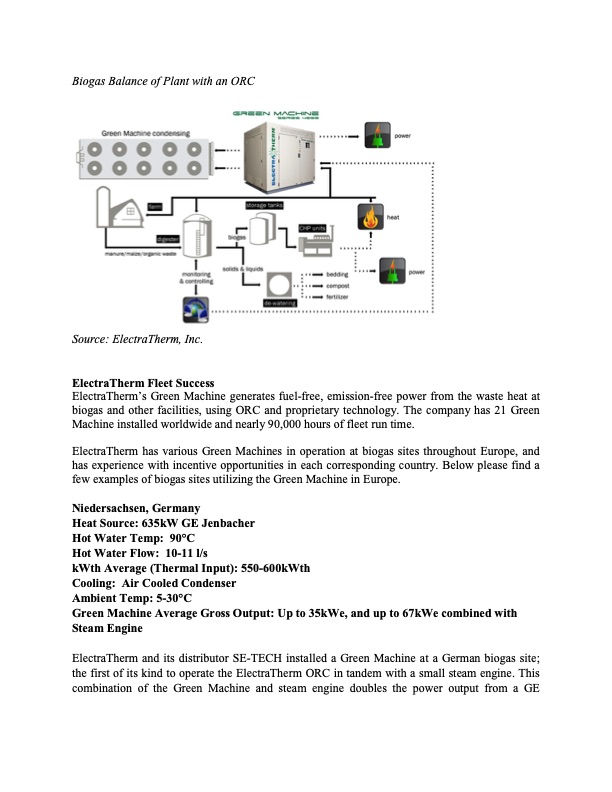

Biogas Balance of Plant with an ORC Source: ElectraTherm, Inc. ElectraTherm Fleet Success ElectraTherm’s Green Machine generates fuel-free, emission-free power from the waste heat at biogas and other facilities, using ORC and proprietary technology. The company has 21 Green Machine installed worldwide and nearly 90,000 hours of fleet run time. ElectraTherm has various Green Machines in operation at biogas sites throughout Europe, and has experience with incentive opportunities in each corresponding country. Below please find a few examples of biogas sites utilizing the Green Machine in Europe. Niedersachsen, Germany Heat Source: 635kW GE Jenbacher Hot Water Temp: 90°C Hot Water Flow: 10-11 l/s kWth Average (Thermal Input): 550-600kWth Cooling: Air Cooled Condenser Ambient Temp: 5-30°C Green Machine Average Gross Output: Up to 35kWe, and up to 67kWe combined with Steam Engine ElectraTherm and its distributor SE-TECH installed a Green Machine at a German biogas site; the first of its kind to operate the ElectraTherm ORC in tandem with a small steam engine. This combination of the Green Machine and steam engine doubles the power output from a GEPDF Image | Utilizing Waste Heat Incentives at Biogas Plants
