Text from PDF Page: 289

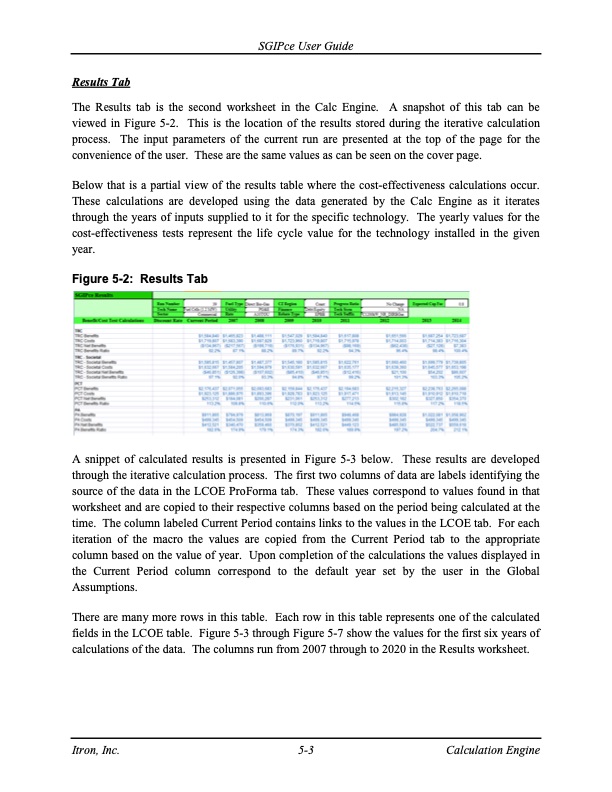

SGIPce User Guide Results Tab The Results tab is the second worksheet in the Calc Engine. A snapshot of this tab can be viewed in Figure 5-2. This is the location of the results stored during the iterative calculation process. The input parameters of the current run are presented at the top of the page for the convenience of the user. These are the same values as can be seen on the cover page. Below that is a partial view of the results table where the cost-effectiveness calculations occur. These calculations are developed using the data generated by the Calc Engine as it iterates through the years of inputs supplied to it for the specific technology. The yearly values for the cost-effectiveness tests represent the life cycle value for the technology installed in the given year. Figure 5-2: Results Tab A snippet of calculated results is presented in Figure 5-3 below. These results are developed through the iterative calculation process. The first two columns of data are labels identifying the source of the data in the LCOE ProForma tab. These values correspond to values found in that worksheet and are copied to their respective columns based on the period being calculated at the time. The column labeled Current Period contains links to the values in the LCOE tab. For each iteration of the macro the values are copied from the Current Period tab to the appropriate column based on the value of year. Upon completion of the calculations the values displayed in the Current Period column correspond to the default year set by the user in the Global Assumptions. There are many more rows in this table. Each row in this table represents one of the calculated fields in the LCOE table. Figure 5-3 through Figure 5-7 show the values for the first six years of calculations of the data. The columns run from 2007 through to 2020 in the Results worksheet. Itron, Inc. 5-3 Calculation EnginePDF Image | Cost-Effectiveness of Distributed Generation Technologies
