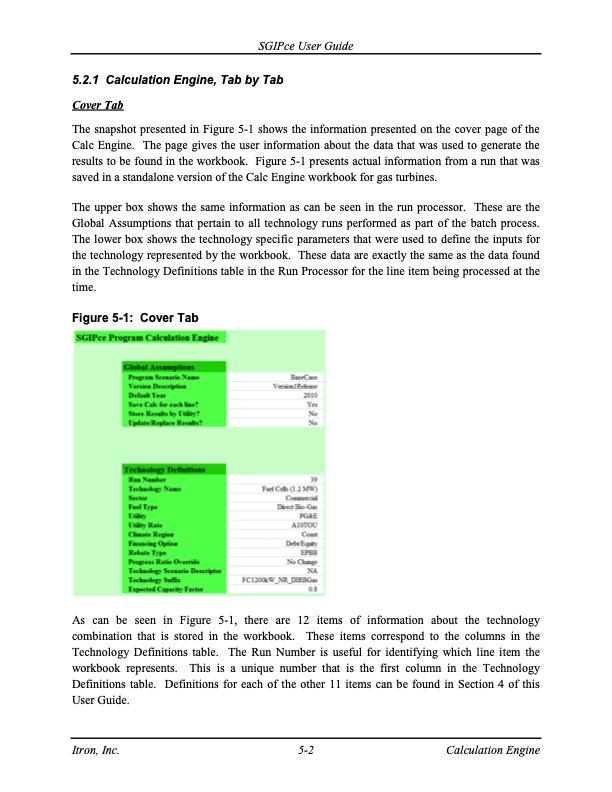

SGIPce User Guide 5.2.1 Calculation Engine, Tab by Tab Cover Tab The snapshot presented in Figure 5-1 shows the information presented on the cover page of the Calc Engine. The page gives the user information about the data that was used to generate the results to be found in the workbook. Figure 5-1 presents actual information from a run that was saved in a standalone version of the Calc Engine workbook for gas turbines. The upper box shows the same information as can be seen in the run processor. These are the Global Assumptions that pertain to all technology runs performed as part of the batch process. The lower box shows the technology specific parameters that were used to define the inputs for the technology represented by the workbook. These data are exactly the same as the data found in the Technology Definitions table in the Run Processor for the line item being processed at the time. Figure 5-1: Cover Tab As can be seen in Figure 5-1, there are 12 items of information about the technology combination that is stored in the workbook. These items correspond to the columns in the Technology Definitions table. The Run Number is useful for identifying which line item the workbook represents. This is a unique number that is the first column in the Technology Definitions table. Definitions for each of the other 11 items can be found in Section 4 of this User Guide. Itron, Inc. 5-2 Calculation EnginePDF Image | Cost-Effectiveness of Distributed Generation Technologies
