PDF Publication Title:
Text from PDF Page: 019

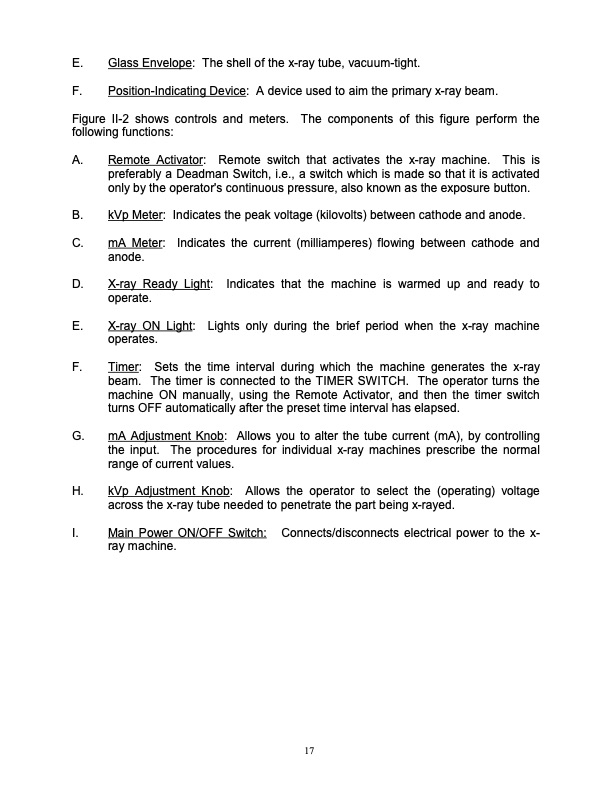

E. Glass Envelope: The shell of the x-ray tube, vacuum-tight. F. Position-Indicating Device: A device used to aim the primary x-ray beam. Figure II-2 shows controls and meters. The components of this figure perform the following functions: A. Remote Activator: Remote switch that activates the x-ray machine. This is preferably a Deadman Switch, i.e., a switch which is made so that it is activated only by the operator's continuous pressure, also known as the exposure button. B. kVp Meter: Indicates the peak voltage (kilovolts) between cathode and anode. C. mA Meter: Indicates the current (milliamperes) flowing between cathode and anode. D. X-ray Ready Light: Indicates that the machine is warmed up and ready to operate. E. X-ray ON Light: Lights only during the brief period when the x-ray machine operates. F. Timer: Sets the time interval during which the machine generates the x-ray beam. The timer is connected to the TIMER SWITCH. The operator turns the machine ON manually, using the Remote Activator, and then the timer switch turns OFF automatically after the preset time interval has elapsed. G. mA Adjustment Knob: Allows you to alter the tube current (mA), by controlling the input. The procedures for individual x-ray machines prescribe the normal range of current values. H. kVp Adjustment Knob: Allows the operator to select the (operating) voltage across the x-ray tube needed to penetrate the part being x-rayed. I. Main Power ON/OFF Switch: Connects/disconnects electrical power to the x- ray machine. 17PDF Image | Radiation Machine Registration Permit Manual
