Text from PDF Page: 374

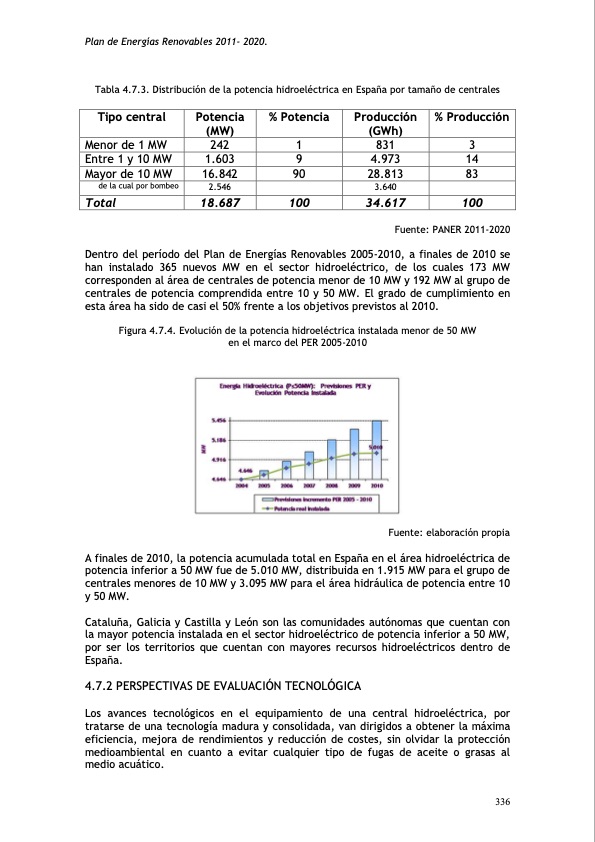

Plan de Energías Renovables 2011- 2020. Tabla 4.7.3. Distribución de la potencia hidroeléctrica en España por tamaño de centrales Tipo central Menor de 1 MW Entre 1 y 10 MW Mayor de 10 MW de la cual por bombeo Total Potencia (MW) 242 1.603 16.842 2.546 18.687 % Potencia 1 9 90 100 Producción (GWh) 831 4.973 28.813 3.640 34.617 % Producción 3 14 83 100 Dentro del período del Plan de Energías Renovables 2005-2010, a finales de 2010 se han instalado 365 nuevos MW en el sector hidroeléctrico, de los cuales 173 MW corresponden al área de centrales de potencia menor de 10 MW y 192 MW al grupo de centrales de potencia comprendida entre 10 y 50 MW. El grado de cumplimiento en esta área ha sido de casi el 50% frente a los objetivos previstos al 2010. Figura 4.7.4. Evolución de la potencia hidroeléctrica instalada menor de 50 MW en el marco del PER 2005-2010 Fuente: elaboración propia A finales de 2010, la potencia acumulada total en España en el área hidroeléctrica de potencia inferior a 50 MW fue de 5.010 MW, distribuida en 1.915 MW para el grupo de centrales menores de 10 MW y 3.095 MW para el área hidráulica de potencia entre 10 y 50 MW. Cataluña, Galicia y Castilla y León son las comunidades autónomas que cuentan con la mayor potencia instalada en el sector hidroeléctrico de potencia inferior a 50 MW, por ser los territorios que cuentan con mayores recursos hidroeléctricos dentro de España. 4.7.2 PERSPECTIVAS DE EVALUACIÓN TECNOLÓGICA Los avances tecnológicos en el equipamiento de una central hidroeléctrica, por tratarse de una tecnología madura y consolidada, van dirigidos a obtener la máxima eficiencia, mejora de rendimientos y reducción de costes, sin olvidar la protección medioambiental en cuanto a evitar cualquier tipo de fugas de aceite o grasas al medio acuático. Fuente: PANER 2011-2020 336

PDF Image | PLAN DE ENERGIAS RENOVABLES
