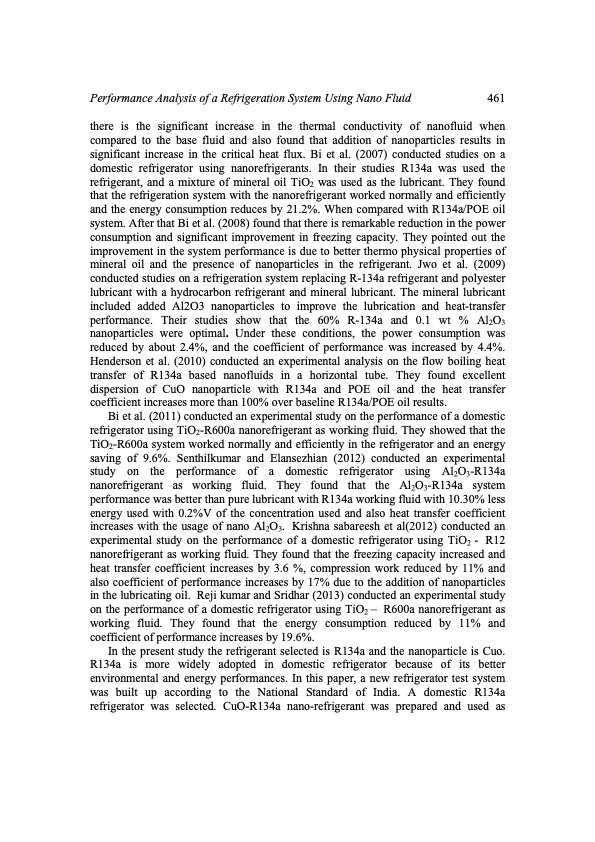

Performance Analysis of a Refrigeration System Using Nano Fluid 461 there is the significant increase in the thermal conductivity of nanofluid when compared to the base fluid and also found that addition of nanoparticles results in significant increase in the critical heat flux. Bi et al. (2007) conducted studies on a domestic refrigerator using nanorefrigerants. In their studies R134a was used the refrigerant, and a mixture of mineral oil TiO2 was used as the lubricant. They found that the refrigeration system with the nanorefrigerant worked normally and efficiently and the energy consumption reduces by 21.2%. When compared with R134a/POE oil system. After that Bi et al. (2008) found that there is remarkable reduction in the power consumption and significant improvement in freezing capacity. They pointed out the improvement in the system performance is due to better thermo physical properties of mineral oil and the presence of nanoparticles in the refrigerant. Jwo et al. (2009) conducted studies on a refrigeration system replacing R-134a refrigerant and polyester lubricant with a hydrocarbon refrigerant and mineral lubricant. The mineral lubricant included added Al2O3 nanoparticles to improve the lubrication and heat-transfer performance. Their studies show that the 60% R-134a and 0.1 wt % Al2O3 nanoparticles were optimal. Under these conditions, the power consumption was reduced by about 2.4%, and the coefficient of performance was increased by 4.4%. Henderson et al. (2010) conducted an experimental analysis on the flow boiling heat transfer of R134a based nanofluids in a horizontal tube. They found excellent dispersion of CuO nanoparticle with R134a and POE oil and the heat transfer coefficient increases more than 100% over baseline R134a/POE oil results. Bi et al. (2011) conducted an experimental study on the performance of a domestic refrigerator using TiO2-R600a nanorefrigerant as working fluid. They showed that the TiO2-R600a system worked normally and efficiently in the refrigerator and an energy saving of 9.6%. Senthilkumar and Elansezhian (2012) conducted an experimental study on the performance of a domestic refrigerator using Al2O3-R134a nanorefrigerant as working fluid. They found that the Al2O3-R134a system performance was better than pure lubricant with R134a working fluid with 10.30% less energy used with 0.2%V of the concentration used and also heat transfer coefficient increases with the usage of nano Al2O3. Krishna sabareesh et al(2012) conducted an experimental study on the performance of a domestic refrigerator using TiO2 - R12 nanorefrigerant as working fluid. They found that the freezing capacity increased and heat transfer coefficient increases by 3.6 %, compression work reduced by 11% and also coefficient of performance increases by 17% due to the addition of nanoparticles in the lubricating oil. Reji kumar and Sridhar (2013) conducted an experimental study on the performance of a domestic refrigerator using TiO2 – R600a nanorefrigerant as working fluid. They found that the energy consumption reduced by 11% and coefficient of performance increases by 19.6%. In the present study the refrigerant selected is R134a and the nanoparticle is Cuo. R134a is more widely adopted in domestic refrigerator because of its better environmental and energy performances. In this paper, a new refrigerator test system was built up according to the National Standard of India. A domestic R134a refrigerator was selected. CuO-R134a nano-refrigerant was prepared and used asPDF Image | Performance Analysis of a Refrigeration System Using Nano Fluid
