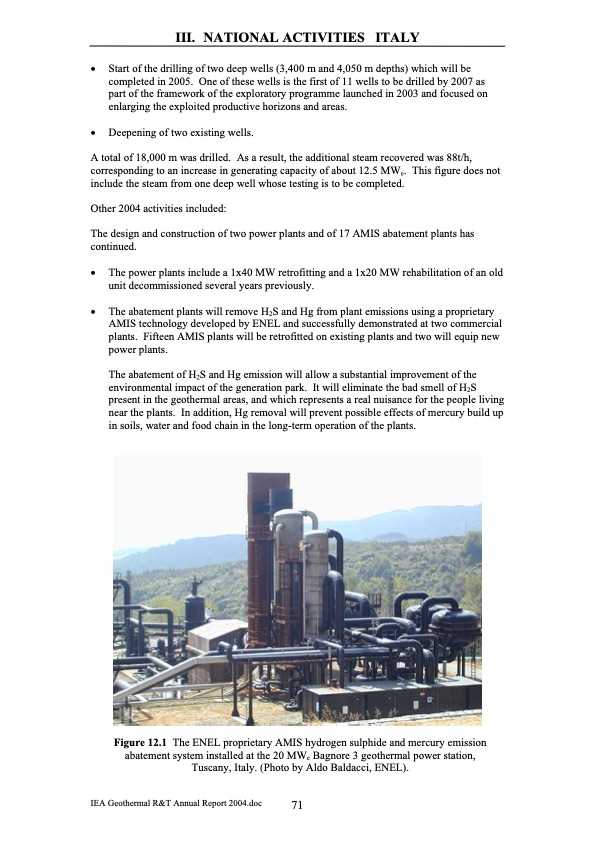

III. NATIONAL ACTIVITIES ITALY • Start of the drilling of two deep wells (3,400 m and 4,050 m depths) which will be completed in 2005. One of these wells is the first of 11 wells to be drilled by 2007 as part of the framework of the exploratory programme launched in 2003 and focused on enlarging the exploited productive horizons and areas. • Deepening of two existing wells. A total of 18,000 m was drilled. As a result, the additional steam recovered was 88t/h, corresponding to an increase in generating capacity of about 12.5 MWe. This figure does not include the steam from one deep well whose testing is to be completed. Other 2004 activities included: The design and construction of two power plants and of 17 AMIS abatement plants has continued. • The power plants include a 1x40 MW retrofitting and a 1x20 MW rehabilitation of an old unit decommissioned several years previously. • The abatement plants will remove H2S and Hg from plant emissions using a proprietary AMIS technology developed by ENEL and successfully demonstrated at two commercial plants. Fifteen AMIS plants will be retrofitted on existing plants and two will equip new power plants. The abatement of H2S and Hg emission will allow a substantial improvement of the environmental impact of the generation park. It will eliminate the bad smell of H2S present in the geothermal areas, and which represents a real nuisance for the people living near the plants. In addition, Hg removal will prevent possible effects of mercury build up in soils, water and food chain in the long-term operation of the plants. Figure 12.1 The ENEL proprietary AMIS hydrogen sulphide and mercury emission abatement system installed at the 20 MWe Bagnore 3 geothermal power station, Tuscany, Italy. (Photo by Aldo Baldacci, ENEL). IEA Geothermal R&T Annual Report 2004.doc 71PDF Image | Geothermal Energy Annual Report 2004
