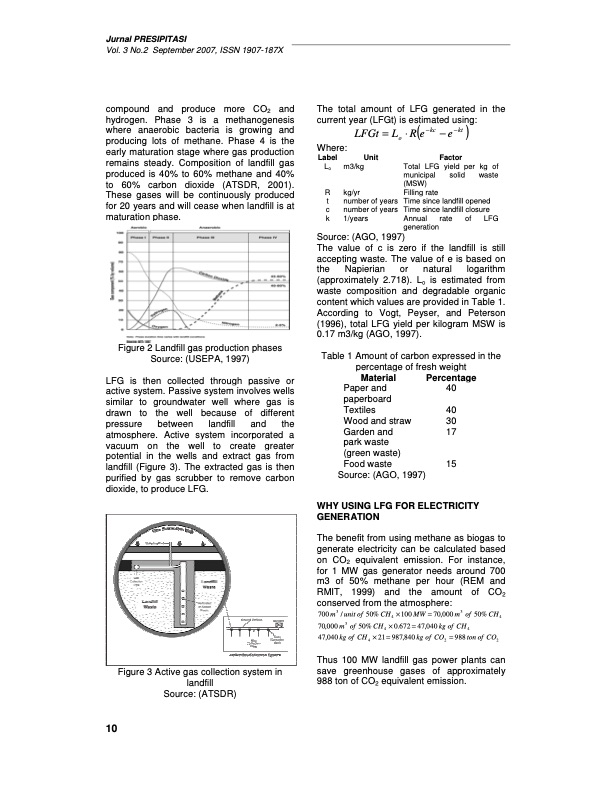

Jurnal PRESIPITASI Vol. 3 No.2 September 2007, ISSN 1907-187X compound and produce more CO2 and hydrogen. Phase 3 is a methanogenesis where anaerobic bacteria is growing and producing lots of methane. Phase 4 is the early maturation stage where gas production remains steady. Composition of landfill gas produced is 40% to 60% methane and 40% to 60% carbon dioxide (ATSDR, 2001). These gases will be continuously produced for 20 years and will cease when landfill is at maturation phase. The total amount of LFG generated in the current year (LFGt) is estimated using: Figure 2 Landfill gas production phases Source: (USEPA, 1997) LFG is then collected through passive or active system. Passive system involves wells similar to groundwater well where gas is drawn to the well because of different pressure between landfill and the atmosphere. Active system incorporated a vacuum on the well to create greater potential in the wells and extract gas from landfill (Figure 3). The extracted gas is then purified by gas scrubber to remove carbon dioxide, to produce LFG. Source: (AGO, 1997) The value of c is zero if the landfill is still accepting waste. The value of e is based on the Napierian or natural logarithm (approximately 2.718). Lo is estimated from waste composition and degradable organic content which values are provided in Table 1. According to Vogt, Peyser, and Peterson (1996), total LFG yield per kilogram MSW is 0.17 m3/kg (AGO, 1997). Table 1 Amount of carbon expressed in the percentage of fresh weight Material Percentage Paper and 40 paperboard Textiles 40 Wood and straw 30 Garden and 17 park waste (green waste) Food waste 15 Source: (AGO, 1997) WHY USING LFG FOR ELECTRICITY GENERATION The benefit from using methane as biogas to generate electricity can be calculated based on CO2 equivalent emission. For instance, for 1 MW gas generator needs around 700 m3 of 50% methane per hour (REM and RMIT, 1999) and the amount of CO2 conserved from the atmosphere: 700m3 /unitof 50%CH4 ×100MW =70,000m3 of 50%CH4 70,000m3 of 50%CH4 ×0.672=47,040kgof CH4 47,040kgof CH4 ×21=987,840kgof CO2 =988tonof CO2 Thus 100 MW landfill gas power plants can save greenhouse gases of approximately 988 ton of CO2 equivalent emission. 10 Figure 3 Active gas collection system in landfill Source: (ATSDR) LFGt=L ⋅R(e−kc −e−kt) o Where: Label Unit Lo m3/kg R kg/yr t number of years c number of years k 1/years Factor Total LFG yield per kg of municipal solid waste (MSW) Filling rate Time since landfill opened Time since landfill closure Annual rate of LFG generationPDF Image | ELECTRICITY GENERATION FROM LANDFILL GAS
