PDF Publication Title:
Text from PDF Page: 258

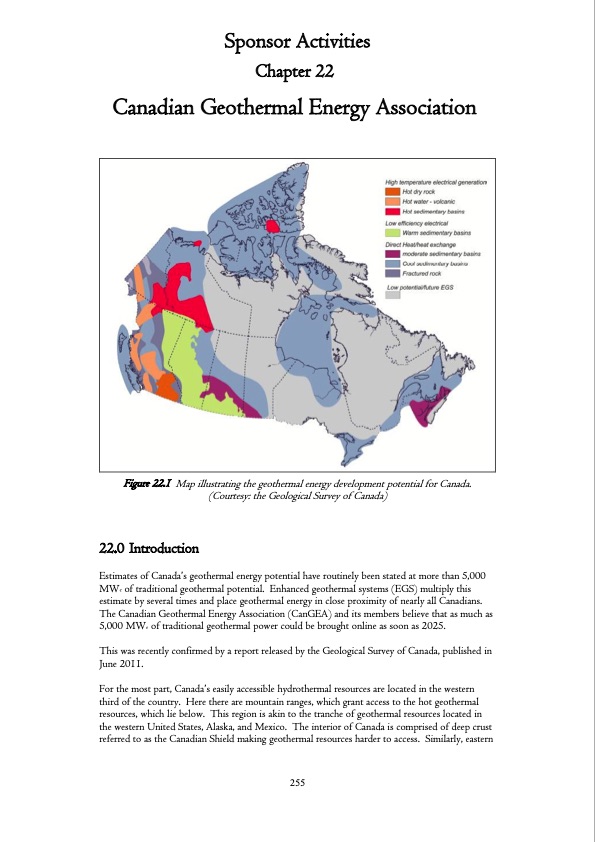

Sponsor Activities Chapter 22 Canadian Geothermal Energy Association Figure 22.1 Map illustrating the geothermal energy development potential for Canada. (Courtesy: the Geological Survey of Canada) 22.0 Introduction Estimates of Canada‘s geothermal energy potential have routinely been stated at more than 5,000 MWe of traditional geothermal potential. Enhanced geothermal systems (EGS) multiply this estimate by several times and place geothermal energy in close proximity of nearly all Canadians. The Canadian Geothermal Energy Association (CanGEA) and its members believe that as much as 5,000 MWe of traditional geothermal power could be brought online as soon as 2025. This was recently confirmed by a report released by the Geological Survey of Canada, published in June 2011. For the most part, Canada‘s easily accessible hydrothermal resources are located in the western third of the country. Here there are mountain ranges, which grant access to the hot geothermal resources, which lie below. This region is akin to the tranche of geothermal resources located in the western United States, Alaska, and Mexico. The interior of Canada is comprised of deep crust referred to as the Canadian Shield making geothermal resources harder to access. Similarly, eastern 255PDF Image | Geothermal Research and Tech IEA
PDF Search Title:
Geothermal Research and Tech IEAOriginal File Name Searched:
geo2010.pdfDIY PDF Search: Google It | Yahoo | Bing
