PDF Publication Title:
Text from PDF Page: 158

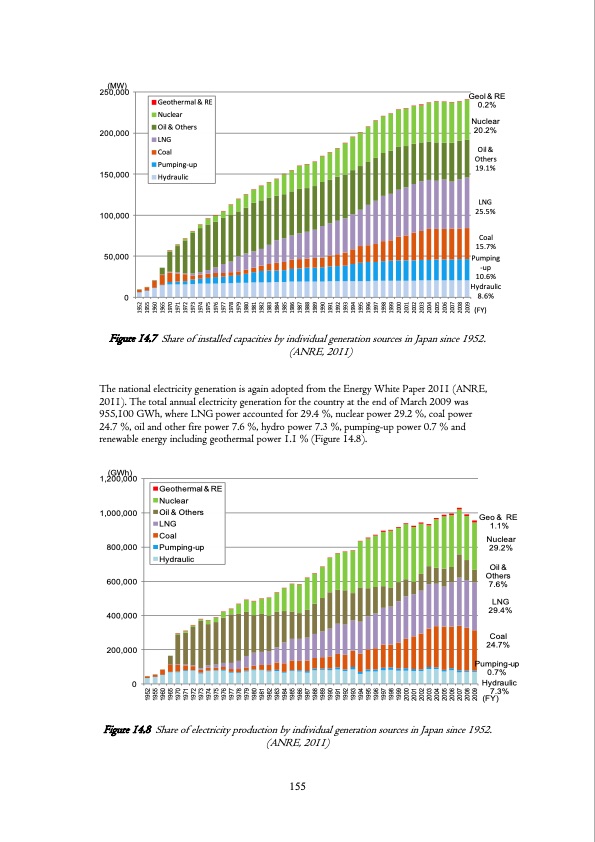

(MW) 250,000 200,000 150,000 100,000 50,000 0 Geothermal & RE Nuclear Oil & Others LNG Coal Pumping-up Hydraulic Geol & RE 0.2% Nuclear 20.2% Oil& Others 19.1% LNG 25.5% Coal 15.7% Pumping -up 10.6% Hydraulic 8.6% (FY) Figure 14.7 Share of installed capacities by individual generation sources in Japan since 1952. (ANRE, 2011) The national electricity generation is again adopted from the Energy White Paper 2011 (ANRE, 2011). The total annual electricity generation for the country at the end of March 2009 was 955,100 GWh, where LNG power accounted for 29.4 %, nuclear power 29.2 %, coal power 24.7 %, oil and other fire power 7.6 %, hydro power 7.3 %, pumping-up power 0.7 % and renewable energy including geothermal power 1.1 % (Figure 14.8). (GWh) 1,200,000 Geothermal & RE Nuclear 1,000,000 Oil & Others LNG Coal 800,000 Pumping-up Hydraulic 600,000 400,000 200,000 0 Figure 14.8 Share of electricity production by individual generation sources in Japan since 1952. (ANRE, 2011) Geo& RE 1.1% Nuclear 29.2% Oil& Others 7.6% LNG 29.4% Coal 24.7% Pumping-up 0.7% Hydraulic 7.3% 1952 1952 1955 1955 1960 1960 1965 1965 1970 1970 1971 1971 1972 1972 1973 1973 1974 1974 1975 1975 1976 1976 1977 1977 1978 1978 1979 1979 1980 1980 1981 1981 1982 1982 1983 1983 1984 1984 1985 1985 1986 1986 1987 1987 1988 1988 1989 1989 1990 1990 1991 1991 1992 1992 1993 1993 1994 1994 1995 1995 1996 1996 1997 1997 1998 1998 1999 1999 2000 2000 2001 2001 2002 2002 2003 2003 2004 2004 2005 2005 2006 2006 2007 2007 2008 2008 2009 2009 155 (FY)PDF Image | Geothermal Research and Tech IEA
