Text from PDF Page: 003

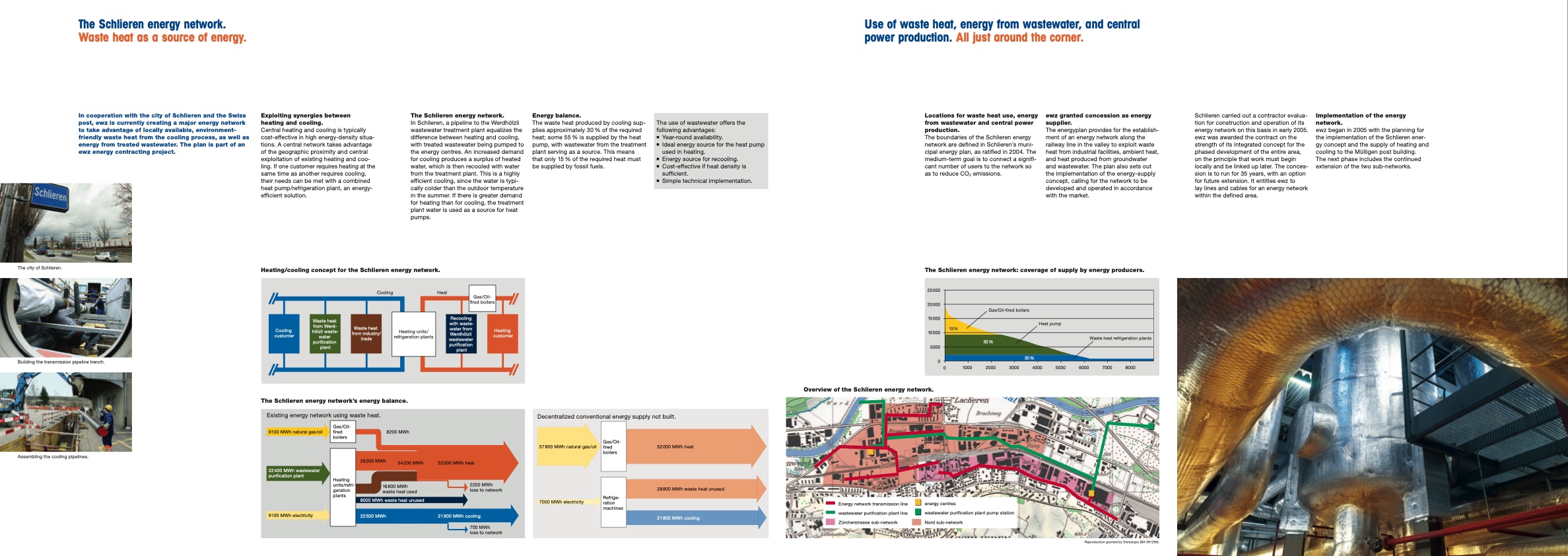

Decentralized conventional energy supply not built. 57800 MWh natural gas/oil 7000 MWh electricity Gas/Oil- fired boilers 52000 MWh heat Refrige- ration machines 28800 MWh waste heat unused 21800 MWh cooling The Schlieren energy network. In Schlieren, a pipeline to the Werdhölzli wastewater treatment plant equalizes the difference between heating and cooling, with treated wastewater being pumped to the energy centres. An increased demand for cooling produces a surplus of heated water, which is then recooled with water from the treatment plant. This is a highly efficient cooling, since the water is typi- cally colder than the outdoor temperature in the summer. If there is greater demand for heating than for cooling, the treatment plant water is used as a source for heat pumps. Energy balance. The waste heat produced by cooling sup- plies approximately 30 % of the required heat; some 55 % is supplied by the heat pump, with wastewater from the treatment plant serving as a source. This means that only 15 % of the required heat must be supplied by fossil fuels. energy network. ance. 00 MWh 0 MWh e heat used te heat unused 2200 MWh loss to network 700 MWh loss to network Heat Gas /Oil- fired boilers Heating units/ refrigeration plants Recooling with waste- water from Werdhölzli wastewater purification plant Heating customer 54200 MWh 52000 MWh heat The use of wastewater offers the following advantages: n Year-round availability. n Ideal energy source for the heat pump used in heating. n Energy source for recooling. n Cost-effective if heat density is sufficient. n Simple technical implementation. 21800 MWh coolingPDF Image | Schlieren energy network waste heat power
