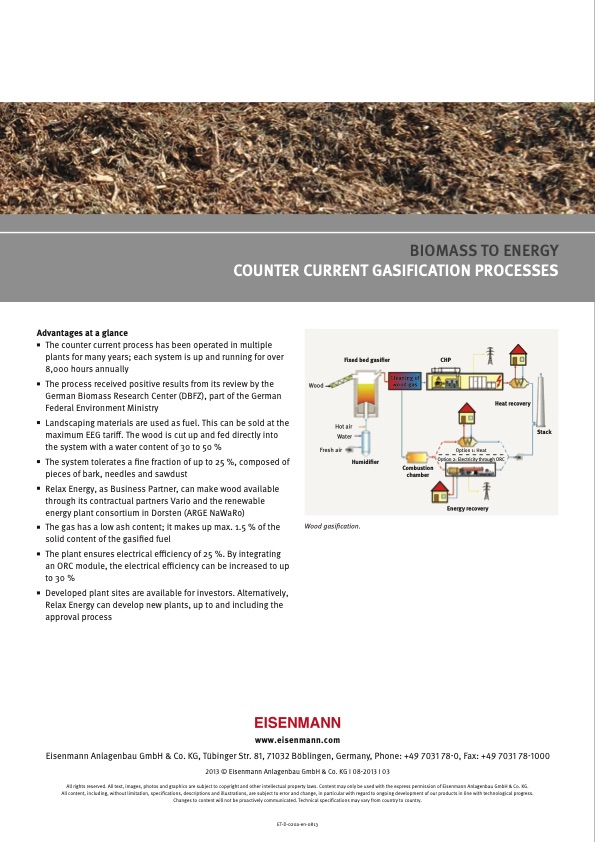

Biomass to energy counter current gasiFication Processes Advantages at a glance ■ The counter current process has been operated in multiple plants for many years; each system is up and running for over 8,000 hours annually ■ The process received positive results from its review by the German Biomass Research Center (DBFZ), part of the German Federal Environment Ministry ■ Landscaping materials are used as fuel. This can be sold at the maximum EEG tariff. The wood is cut up and fed directly into the system with a water content of 30 to 50 % ■ The system tolerates a fine fraction of up to 25 %, composed of pieces of bark, needles and sawdust ■ Relax Energy, as Business Partner, can make wood available through its contractual partners Vario and the renewable energy plant consortium in Dorsten (ARGE NaWaRo) ■ The gas has a low ash content; it makes up max. 1.5 % of the solid content of the gasified fuel ■ The plant ensures electrical efficiency of 25 %. By integrating an ORC module, the electrical efficiency can be increased to up to 30 % ■ Developed plant sites are available for investors. Alternatively, Relax Energy can develop new plants, up to and including the approval process Wood gasification. Wood Cleaning of Fresh air Heat recovery Stack Option 1: Heat Option 2: Electricity through ORC Fixed bed gasifier Hot air Water CHP wood gas Humidifier Combustion chamber Energy recovery www.eisenmann.com Eisenmann Anlagenbau GmbH & Co. KG, Tübinger Str. 81, 71032 Böblingen, Germany, Phone: +49 7031 78-0, Fax: +49 7031 78-1000 2013 © Eisenmann Anlagenbau GmbH & Co. KG I 08-2013 I 03 All rights reserved. All text, images, photos and graphics are subject to copyright and other intellectual property laws. Content may only be used with the express permission of Eisenmann Anlagenbau GmbH & Co. KG. All content, including, without limitation, specifications, descriptions and illustrations, are subject to error and change, in particular with regard to ongoing development of our products in line with technological progress. Changes to content will not be proactively communicated. Technical specifications may vary from country to country. ET-D-020a-en-0813PDF Image | Biomass to energy
