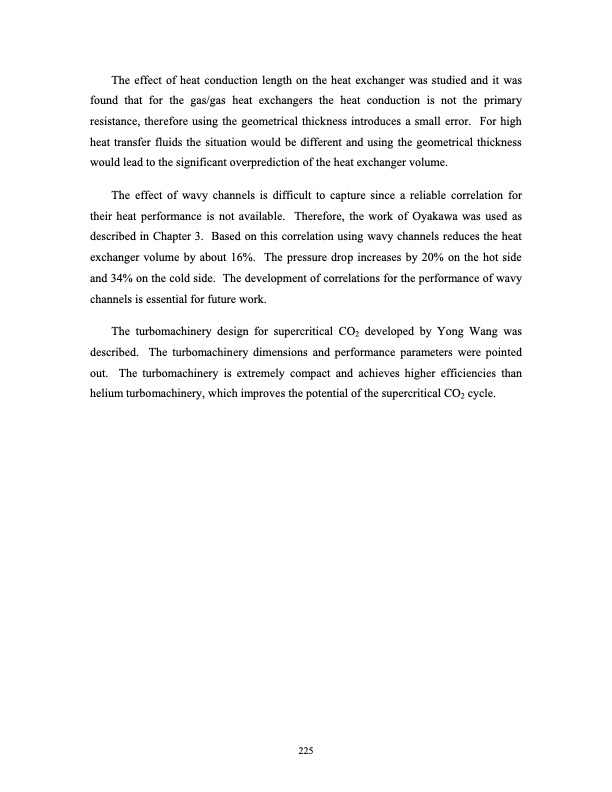

The effect of heat conduction length on the heat exchanger was studied and it was found that for the gas/gas heat exchangers the heat conduction is not the primary resistance, therefore using the geometrical thickness introduces a small error. For high heat transfer fluids the situation would be different and using the geometrical thickness would lead to the significant overprediction of the heat exchanger volume. The effect of wavy channels is difficult to capture since a reliable correlation for their heat performance is not available. Therefore, the work of Oyakawa was used as described in Chapter 3. Based on this correlation using wavy channels reduces the heat exchanger volume by about 16%. The pressure drop increases by 20% on the hot side and 34% on the cold side. The development of correlations for the performance of wavy channels is essential for future work. The turbomachinery design for supercritical CO2 developed by Yong Wang was described. The turbomachinery dimensions and performance parameters were pointed out. The turbomachinery is extremely compact and achieves higher efficiencies than helium turbomachinery, which improves the potential of the supercritical CO2 cycle. 225PDF Image | Advanced Nuclear Power Technology Program A Supercritical Carbon Dioxide Cycle for Next Generation Nuclear Reactors
