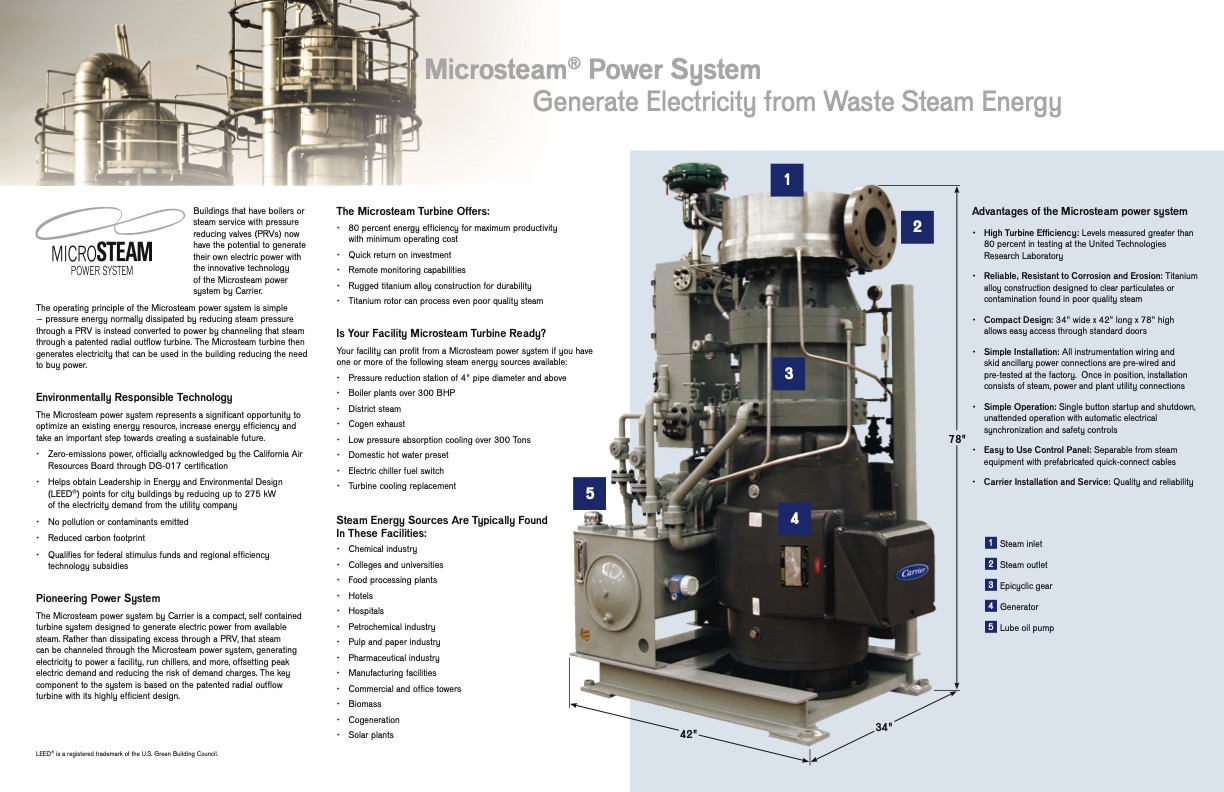

Microsteam® Power System Generate Electricity from Waste Steam Energy Buildings that have boilers or steam service with pressure reducing valves (PRVs) now have the potential to generate their own electric power with the innovative technology of the Microsteam power system by Carrier. The operating principle of the Microsteam power system is simple – pressure energy normally dissipated by reducing steam pressure through a PRV is instead converted to power by channeling that steam through a patented radial outflow turbine. The Microsteam turbine then generates electricity that can be used in the building reducing the need to buy power. Environmentally Responsible Technology The Microsteam power system represents a significant opportunity to optimize an existing energy resource, increase energy efficiency and take an important step towards creating a sustainable future. • Zero-emissions power, officially acknowledged by the California Air Resources Board through DG-017 certification • Helps obtain Leadership in Energy and Environmental Design (LEED®) points for city buildings by reducing up to 275 kW of the electricity demand from the utility company • No pollution or contaminants emitted • Reduced carbon footprint • Qualifies for federal stimulus funds and regional efficiency technology subsidies Pioneering Power System The Microsteam power system by Carrier is a compact, self contained turbine system designed to generate electric power from available steam. Rather than dissipating excess through a PRV, that steam can be channeled through the Microsteam power system, generating electricity to power a facility, run chillers, and more, offsetting peak electric demand and reducing the risk of demand charges. The key component to the system is based on the patented radial outflow turbine with its highly efficient design. The Microsteam Turbine Offers: • 80 percent energy efficiency for maximum productivity with minimum operating cost • Quick return on investment • Remote monitoring capabilities • Rugged titanium alloy construction for durability • Titanium rotor can process even poor quality steam Is Your Facility Microsteam Turbine Ready? Your facility can profit from a Microsteam power system if you have one or more of the following steam energy sources available: • Pressure reduction station of 4" pipe diameter and above • Boiler plants over 300 BHP • District steam • Cogen exhaust • Low pressure absorption cooling over 300 Tons • Domestic hot water preset • Electric chiller fuel switch • Turbine cooling replacement Steam Energy Sources Are Typically Found In These Facilities: • Chemical industry • Colleges and universities • Food processing plants • Hotels • Hospitals • Petrochemical industry • Pulp and paper industry • Pharmaceutical industry • Manufacturing facilities • Commercial and office towers • Biomass • Cogeneration • Solar plants 5 LEED® is a registered trademark of the U.S. Green Building Council. 1 3 4 • • • • • 78" • • 2 Advantages of the Microsteam power system High Turbine Efficiency: Levels measured greater than 80 percent in testing at the United Technologies Research Laboratory Reliable, Resistant to Corrosion and Erosion: Titanium alloy construction designed to clear particulates or contamination found in poor quality steam Compact Design: 34" wide x 42" long x 78" high allows easy access through standard doors Simple Installation: All instrumentation wiring and skid ancillary power connections are pre-wired and pre-tested at the factory. Once in position, installation consists of steam, power and plant utility connections Simple Operation: Single button startup and shutdown, unattended operation with automatic electrical synchronization and safety controls Easy to Use Control Panel: Separable from steam equipment with prefabricated quick-connect cables Carrier Installation and Service: Quality and reliability 1 Steam inlet 2 Steam outlet 3 Epicyclicgear 4 Generator 5 Lubeoilpump 42" 34"PDF Image | Microsteam Power System Distributed Power Generation
