Text from PDF Page: 001

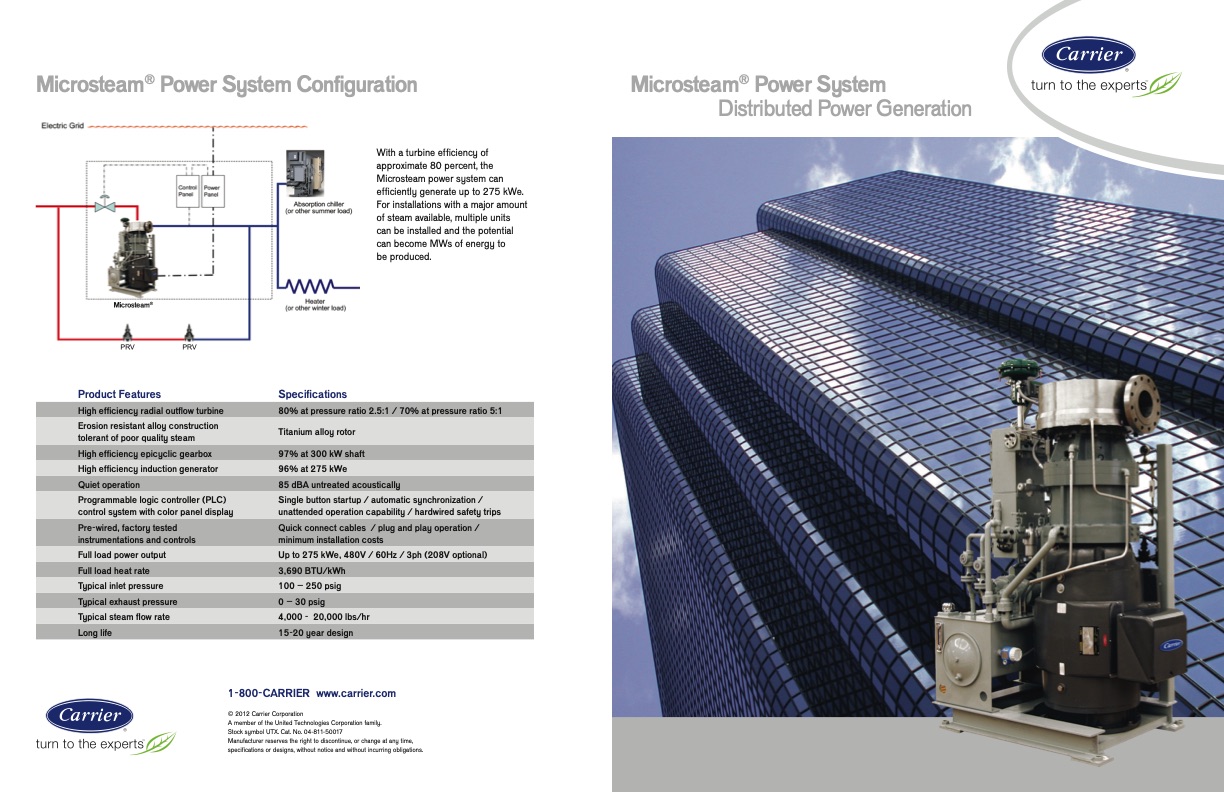

Microsteam® Power System Configuration Microsteam® Power System Distributed Power Generation Microsteam® PRV PRV Product Features Specifications With a turbine efficiency of approximate 80 percent, the Microsteam power system can efficiently generate up to 275 kWe. For installations with a major amount of steam available, multiple units can be installed and the potential can become MWs of energy to be produced. High efficiency radial outflow turbine 80% at pressure ratio 2.5:1 / 70% at pressure ratio 5:1 Erosion resistant alloy construction tolerant of poor quality steam Titanium alloy rotor High efficiency epicyclic gearbox 97% at 300 kW shaft High efficiency induction generator 96% at 275 kWe Quiet operation 85 dBA untreated acoustically Programmable logic controller (PLC) control system with color panel display Single button startup / automatic synchronization / unattended operation capability / hardwired safety trips Pre-wired, factory tested instrumentations and controls Quick connect cables / plug and play operation / minimum installation costs Full load power output Up to 275 kWe, 480V / 60Hz / 3ph (208V optional) Full load heat rate 3,690 BTU/kWh Typical inlet pressure 100 – 250 psig Typical exhaust pressure 0 – 30 psig Typical steam flow rate 4,000 - 20,000 lbs/hr Long life 15-20 year design 1-800-CARRIER www.carrier.com © 2012 Carrier Corporation A member of the United Technologies Corporation family. Stock symbol UTX. Cat. No. 04-811-50017 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs, without notice and without incurring obligations.
