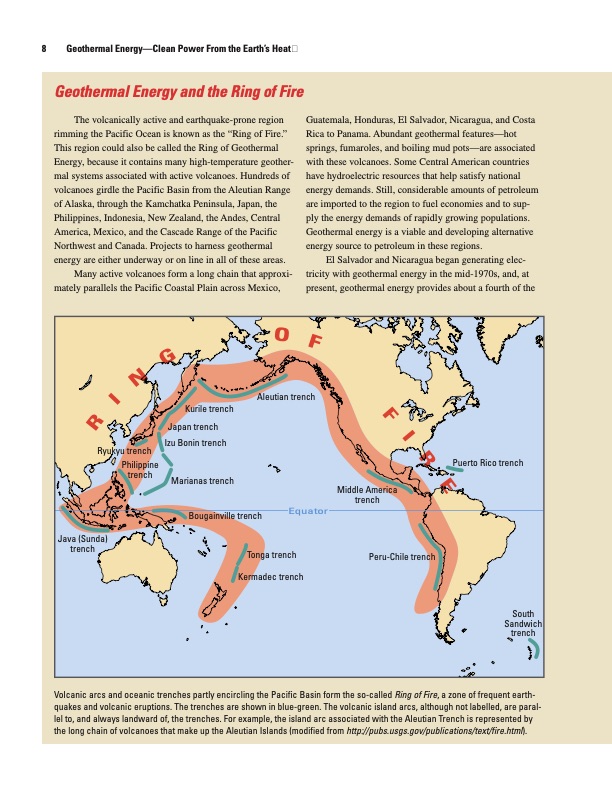

8 Geothermal Energy—Clean Power From the Earth’s Heat� Geothermal Energy and the Ring of Fire The volcanically active and earthquake-prone region rimming the Pacific Ocean is known as the “Ring of Fire.” This region could also be called the Ring of Geothermal Energy, because it contains many high-temperature geother- mal systems associated with active volcanoes. Hundreds of volcanoes girdle the Pacific Basin from the Aleutian Range of Alaska, through the Kamchatka Peninsula, Japan, the Philippines, Indonesia, New Zealand, the Andes, Central America, Mexico, and the Cascade Range of the Pacific Northwest and Canada. Projects to harness geothermal energy are either underway or on line in all of these areas. Many active volcanoes form a long chain that approxi- mately parallels the Pacific Coastal Plain across Mexico, � � � � � � � � � � ���� ������� ������ ����� ������ �������� ������ ���������� ������ ������ ������ ����� ������ �������� ������ ������������ ������ ��� ����� ������ ���������� ������ ������ ������ ������ ���� ������ �������� ������ Guatemala, Honduras, El Salvador, Nicaragua, and Costa Rica to Panama. Abundant geothermal features—hot springs, fumaroles, and boiling mud pots—are associated with these volcanoes. Some Central American countries have hydroelectric resources that help satisfy national energy demands. Still, considerable amounts of petroleum are imported to the region to fuel economies and to sup- ply the energy demands of rapidly growing populations. Geothermal energy is a viable and developing alternative energy source to petroleum in these regions. El Salvador and Nicaragua began generating elec- tricity with geothermal energy in the mid-1970s, and, at present, geothermal energy provides about a fourth of the ������� ������ ������� ������ Volcanic arcs and oceanic trenches partly encircling the Pacific Basin form the so-called Ring of Fire, a zone of frequent earth- quakes and volcanic eruptions. The trenches are shown in blue-green. The volcanic island arcs, although not labelled, are paral- lel to, and always landward of, the trenches. For example, the island arc associated with the Aleutian Trench is represented by the long chain of volcanoes that make up the Aleutian Islands (modified from http://pubs.usgs.gov/publications/text/fire.html). ����� �������� ������PDF Image | Geothermal Energy 1249 USGS
